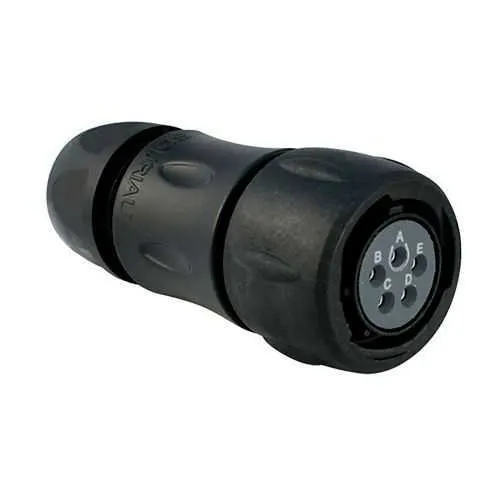

Eaton UTS6JC14E5SZ Plastic Waterproof Connector - IP68/69K

IP68/69K sealing, 5‑position layout, and gold-plated solder cups guard against water, dust, and corrosion, reducing ingress-related failures and extending service intervals in washdown environments. This directly improves reliability and lowers maintenance costs for automated lines and outdoor equipment. The 16 A IEC and 12 A UL current ratings with a 600 V voltage capability support higher power applications in control panels and motor drives, enabling more compact, cost-effective wiring schemes without overrating components. Operating from -40 to 105 °C and UV-resistant, the connector remains performance-ready across outdoor and extreme industrial climates, decreasing risk of failure in dynamic outdoor installations. The 1/3 bayonet coupling with a straight backplug and a sealing gland backshell simplifies installation, increases mating integrity, and reduces installation time on busy production floors. Neoprene insert material and gold-plated contacts guarantee high conductivity and long-term corrosion resistance for critical control circuits. With 250 mating cycles, the UTS6JC14E5SZ is suited for equipment with frequent maintenance or field swaps, supporting lower lifecycle costs and predictable downtime planning. Cable diameter compatibility from 5 to 14 mm enables flexible harness design and reduces the need for multiple backshell configurations, while the 14 shell size and 5‑contact layout align with common industrial I/O schemes. Overall, the combination of IP protection, robust electrical specs, and hydraulic/gasket sealing supports compliant, reliable installations in automated processes, washdown zones, and rugged machinery.
