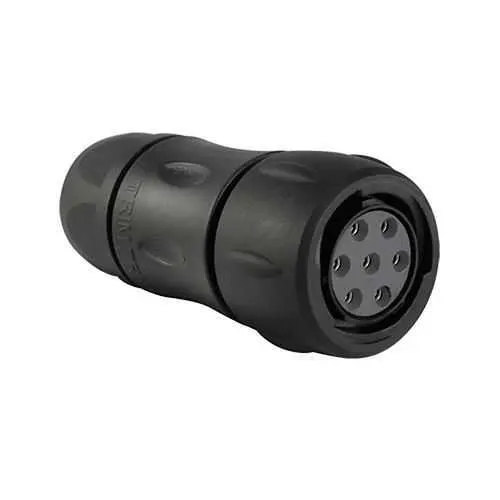

Eaton UTS6JC14E7S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC14E7S
Quick Summary
The Eaton UTS6JC14E7S plastic waterproof connector provides a rugged IP68/69K connection for automation and outdoor machinery. Operators struggle with water ingress, corrosion, and maintenance downtime in remote installations. UL 1977 and IEC 61984 compliance, along with the IP rating, deliver safety, reliability, and regulatory alignment in demanding conditions. The UTS6JC14E7S is a 7‑position plug with gold-plated solder contacts and a sealing gland backshell, offering straightforward field servicing and durable performance in harsh environments. This makes it a practical choice for system integrators and plant engineers seeking robust connectivity with predictable lifecycle costs and scalable automation deployments.
Product Information
Extended Description
UTS6JC14E7S Eaton: Plastic plug, with cable gland backshell, with 7 female solder contacts, IP68/69K in unmated conditions; UTS6JC14E7S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E7S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
45.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
10 A UL 16 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability Layout with ground cavity
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against oil
Test current
16 A IEC 7 A CSA 10 A UL
Test voltage
500 V UL 300 V IEC 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
IP68/69K protection in unmated conditions ensures ongoing reliability in washdown and outdoor environments, reducing maintenance downtime and replacement costs for critical equipment. The 7-position layout with gold-plated solder contacts provides a trusted signal path and corrosion resistance, supporting consistent performance in harsh industrial settings. A sealing gland backshell and neoprene insert facilitate simple, secure cable management, enabling fast installation and reliable ingress protection across cable diameters from 5 to 14 mm. With a 1/3 bayonet coupling and straight plug configuration, field assembly is quick and repeatable, minimizing technician time and error. Current ratings of 10 A UL and 16 A IEC, along with 500 V UL test voltage, support a wide range of automation I/O tasks while maintaining safety margins. Mating cycles reach up to 250, allowing longer service life in dynamic systems. The rugged plastic shell and UV resistance contribute to durability for outdoor and mobile equipment, reducing total cost of ownership when deployed at scale. Compliance with UL 1977, IEC 61984, CSA and RoHS exemption 6.c further reduces regulatory risk and simplifies procurement for global projects.
Get a Quick Quote for a Eaton UTS6JC14E7S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E7S?
Enquire Now
FAQs
Installation involves mounting the plug with its Sealing Gland backshell and selecting a compatible cable diameter between 5 mm and 14 mm. Ensure correct orientation (N) and mating with the corresponding receptacle. The 7-cavity layout and Gold-plated contacts simplify field assembly, while the backshell provides ingress protection to meet IP68/69K requirements in harsh environments.
The connector is IP68-rated and supports IP69K in unmated conditions, ensuring watertight performance in high-pressure washdown scenarios. It is UV resistant and designed to withstand exposure to gasoline, mineral oil, and various baths. Operating temperature ranges from -40 °C to 105 °C, making it suitable for outdoor and industrial applications with demanding climates.
This 7-position plug provides a 7-contact solder cup configuration with gold plating. It carries a current rating of 10 A UL and 16 A IEC, with a test current of 16 A IEC and test voltages up to 500 V UL. The layout supports 7 contacts, and the assembly is designed for reliable performance across typical automation I/O tasks.
The UTS6JC14E7S complies with UL 1977 and IEC 61984, as well as CSA-C22.2 No.182.3. It also conforms to RoHS exemption 6.c, which helps reduce regulatory risk and simplify procurement for global projects requiring restricted substances compliance.
Industrial automation, outdoor machinery, and mobile equipment benefit from the UTS6JC14E7S due to its rugged IP68/69K protection, 7-position solder cup contacts, and robust sealing gland backshell. The combination supports reliable field connections in washdown environments, with predictable lifecycle costs, easy maintenance, and compatibility with Souriau UTS series mating systems.
