Eaton UTS6JC1823PX Connector - IP68/69K Waterproof
Part Number: UTS6JC1823PX
Quick Summary
Eaton Souriau UTS6JC1823PX is a rugged waterproof connector enabling 23‑way connectivity in harsh industrial machinery. Engineers often battle sealing failures and maintenance overhead from suboptimal interfaces, causing downtime and increased costs. This design delivers IP68/69K protection and complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, providing reliable, certified performance. In practice, it supports tight, compliant cable assemblies in automated environments, with featured compatibility in Souriau UTS series and backshell options to streamline installation and maintenance budgets.
Product Information
Extended Description

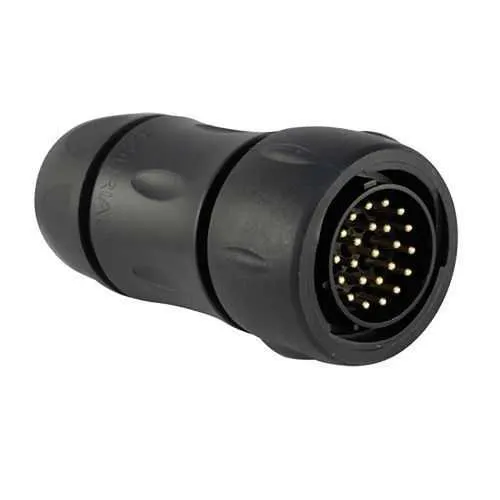

UTS6JC1823PX Eaton: Plastic plug, with cable gland backshell, for 23 male contacts, IP68/69K, keying X; UTS6JC1823PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1823PX
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
9 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against oil Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline
Test current
10 A UL 7 A CSA 9 A IEC
Test voltage
63 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
23
Number of cavity #16
23
Salt spray
500 hour
Feature → Business Impact → Application: The 23‑position plastic plug with a Sealing Gland backshell provides a compact, seal-tight interface that reduces ingress risk, improving uptime in water, dust, and oil exposure. This translates to lower maintenance intervals and fewer field failures in packaging, robotics, and material handling lines. Feature → Application compatibility → The straight plug orientation and 1/3 bayonet coupling simplify field mating in tight spaces, enabling quick panel integration and reduced installation time for conveyor systems and outdoor equipment. Feature → Environmental resilience → UV resistance, oil and acid bath tolerance, and broad temperature range (-40°C to 105°C) ensure reliability in extreme environments, supporting long service life and predictable ROI for fleet upgrades. Feature → Electrical robustness → 9 A IEC / 10 A UL current rating with 63 V IEC and 500 V UL/CSA test voltages guarantees safe power and signal transmission in demanding machinery, reducing overdesign and wire gauge requirements. Feature → Durability and life cycle → 250 mating cycles and polyamide insert materials provide repeatable performance, lowering replacement cycles and total cost of ownership across automation hardware used in manufacturing, mining, or process industries.
