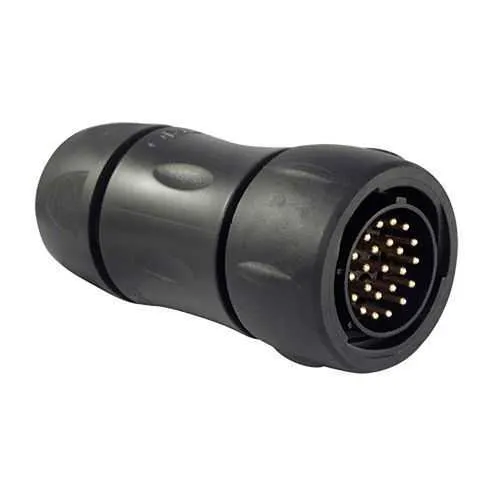

Eaton UTS6JC1832PW Plastic Waterproof IP68/69K Connector
Part Number: UTS6JC1832PW
Quick Summary
Eaton UTS6JC1832PW is a plastic waterproof IP68/69K connector designed for rugged outdoor and mobile equipment interconnects. For engineers and procurement teams, moisture ingress, vibration, and unreliable seals can derail projects and drive maintenance costs. This solution meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3 requirements, reinforcing electrical safety and field reliability in demanding environments. With a 32-position insert and a sealing backshell, it delivers robust sealing and straightforward installation, while remaining compatible with the Souriau UTS ecosystem for scalable, cost-effective interconnects in harsh environments.
Product Information
Extended Description
UTS6JC1832PW Eaton: Plastic plug, with cable gland backshell, for 32 male contacts, IP68/69K, keying W; UTS6JC1832PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1832PW
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.8 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against gasoline
Test current
4 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature: IP68/IP69K sealing with sealing gland backshell. Business Impact: Ensures long-term moisture, dust, and chemical resistance, reducing field failures. Application: Outdoor machinery and mobile equipment where exposure to water, oil, and dust is common. Feature: 32-position insert with 1/3 bayonet coupling. Business Impact: High-density interconnects with quick connect/disconnect, lowering assembly time and inventory complexity. Application: Multi-channel sensor and power interfaces in compact equipment. Feature: Operating range -40 °C to 105 °C and UV resistance. Business Impact: Reliable operation in extreme temperatures and sun exposure, lowering downtime and replacement costs. Application: Outdoor enclosures, heavy machinery, and off-road vehicles. Feature: 250 mating cycles and robust mechanical design. Business Impact: Durable contact reliability reduces maintenance frequency and lifecycle costs. Application: Equipment subjected to frequent plug/unplug cycles in production lines. Feature: Compliance and safety Certifications (IEC 61984, UL 1977, CSA-C22.2 No.182.3). Business Impact: Regulatory alignment enables global deployments and simplifies procurement. Application: Global automation projects requiring standard interconnects. Feature: Material and ruggedness (Polyamide insert, Plastic shell). Business Impact: Chemical and UV resistance with lightweight construction, lowering total cost of ownership. Application: Harsh industrial environments, marine applications, and outdoor installations.
Get a Quick Quote for a Eaton UTS6JC1832PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1832PW?
Enquire Now
FAQs
The UTS6JC1832PW is a 32-contact straight plug using a 1/3 bayonet coupling designed to fit Souriau UTS receptacles within the Eaton Souriau ecosystem. It relies on a sealing gland backshell for IP68/69K protection and is compatible with standard 32‑cavity UTS assemblies, enabling straightforward field upgrades and scalable interconnects for harsh environments.
This connector supports 4 A at IEC, 5 A at UL, and 250 V across the 32-crimp contacts. It is rated for 32 contacts with a mating cycle exposure up to 250 cycles, suitable for intermittent to moderate connection/disconnection demands in industrial settings.
Yes. It features IP68 sealing with a sealing gland backshell, UV resistance, and fire/smoke performance I2F3 per NFF 16101/16102. It is resistant to mineral oil, basic/acid baths, and salt spray, with UL94 V0 flammability, making it well-suited for outdoor, automotive, and heavy-industrial applications.
The UTS6JC1832PW complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, ensuring electrical safety and interoperability in global deployments. It also adheres to IP68 sealing, 1/3 bayonet coupling, and UL/CSA listings relevant to industrial interconnects.
With 250 mating cycles and robust sealing, the UTS6JC1832PW reduces downtime and maintenance costs by preventing ingress-related failures. Its high-density 32-position layout lowers connector count and simplifies wiring, leading to faster assembly, easier field service, and improved total cost of ownership in harsh environments.
