Eaton UTS6JC1832PX Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC1832PX
Quick Summary
Eaton UTS6JC1832PX is a plastic waterproof IP68/69K connector designed for rugged outdoor and industrial equipment interconnections. Engineers face downtime from water and dust ingress, and field maintenance can be costly and disruptive. This solution delivers sealed performance with a 32‑contact layout, 1/3 bayonet coupling, and a straight plug built for harsh environments, while maintaining reliable mating cycles. It carries compliance with CSA-C22.2 No.182.3, UL 1977, and IEC 61984, supporting safety and interoperability across North American and international markets. For procurement, the robust weather resistance, UV stability, and easy installation translate to longer service life, lower maintenance costs, and smoother integration of automation harnesses. In short, it enables reliable connectivity in demanding environments while meeting essential industry standards.
Product Information
Extended Description

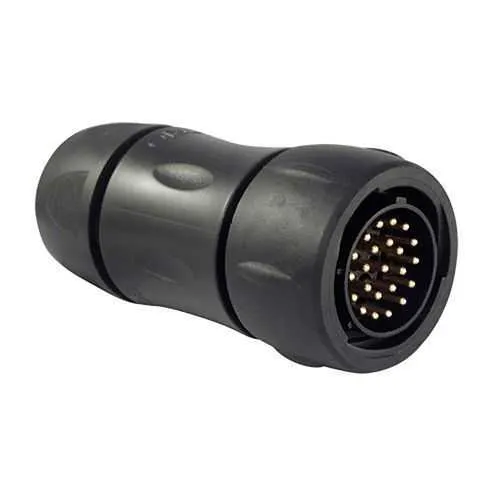

UTS6JC1832PX Eaton: Plastic plug, with cable gland backshell, for 32 male contacts, IP68/69K, keying X; UTS6JC1832PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1832PX
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Flammability rating UL94 V0 RoHS REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against basic bath Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against oil Resistant against gasoline
Test current
4 A IEC 5 A UL 4 A CSA
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
IP68/69K sealing and environmental resilience protect critical automation harnesses in dirty, wet and dusty environments, reducing unplanned downtime and maintenance costs. This connector’s 32-position layout enables dense, high‑channel wiring without compromising seal integrity, supporting compact control cabinets and rugged machinery. The 1/3 bayonet coupling provides quick, tool‑free mating and reliable retention, accelerating field commissioning and minimizing installation time on site. A straight plug with a sealing gland backshell simplifies cable routing and gland tightness, enhancing IP protection and ease of retrofitting existing systems. Polyamide insert and plastic shell deliver weather‑proof robustness while keeping weight low, contributing to easier harness management and installation ergonomics. The connector is UV resistant and resistant to mineral oil and gasoline, helping maintain performance in outdoor or vehicle‑mounted applications. With a mating cycle life of up to 250 cycles, it supports long‑term reliability and predictable maintenance planning. Compliance with UL, CSA and IEC standards provides confidence for global deployments and regulatory alignment. The system also supports straightforward replacement and spares planning, reducing lifecycle costs. Overall, the Eaton UTS6JC1832PX delivers durable connectivity, fast assembly, and predictable performance for industrial automation, material handling, and field equipment.
