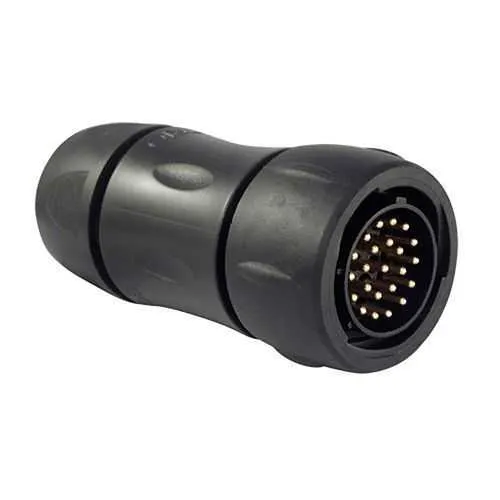

Eaton UTS6JC1832PY Plastic Waterproof Connector IP68/69K
Part Number: UTS6JC1832PY
Quick Summary
The Eaton UTS6JC1832PY is a plastic waterproof IP68/69K connector designed for rugged industrial applications. Maintenance and seal integrity often suffer from vibrations, oil exposure, or improper mating, leading to expensive downtime. Certified to UL 1977, IEC 61984, and CSA-C22.2 No. 182.3, it meets global reliability standards for industrial connectors. Equipped with a 32-contact crimp layout and 1/3 bayonet coupling, it delivers rapid field installation, durable service, and straightforward compatibility with Eaton's UTS ecosystem for control panels, machinery, and mobile equipment.
Product Information
Extended Description
UTS6JC1832PY Eaton: Plastic plug, with cable gland backshell, for 32 male contacts, IP68/69K, keying Y; UTS6JC1832PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1832PY
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A IEC 4 A CSA 5 A UL
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
IP68/IP69K sealing and a sealing gland backshell provide robust protection against water, dust, and washdown environments, reducing field failures and maintenance costs in outdoor and food processing or packaging lines. This directly supports longer equipment uptime and lower total-cost-of-ownership in automation systems. The 32-position polyamide insert supports dense wiring harnesses, enabling higher channel density without increasing panel footprint, which lowers enclosure size and cabling complexity in robotics cells and conveyor systems. The 1/3 bayonet coupling speeds assembly and reduces technician time during commissioning, delivering faster project turnarounds and improved site productivity. With a wide operating temperature range (-40 °C to 105 °C) and UV resistance, this connector sustains performance in challenging climates, extending service life in outdoor machinery and transport applications. Mating cycles rated at 250 and current ratings of 5 A UL / 4 A IEC ensure reliable power and signal transfer for control modules, sensors, and actuators while maintaining regulatory compliance. Backed by standard Eaton tooling and the option to deliver with the connector, installation remains consistent across the UTS series, reducing parts variation and supplier risk. Compatibility with straight plug configurations and the Y-keying arrangement supports flexible layout design in control cabinets and machine panels, promoting scalable solutions for evolving automation needs.
Get a Quick Quote for a Eaton UTS6JC1832PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1832PY?
Enquire Now
FAQs
The UTS6JC1832PY uses a straight plug with a 1/3 bayonet coupling and a sealing gland backshell, designed to mate with compatible UTS receptacles in Eaton's UTS family. It supports a 32-position configuration with a Y-keying orientation for correct alignment. Delivered with the connector option maintains consistent mechanical and electrical mating, simplifying system integration and reducing the risk of misalignment during installation.
Electrical specs include a current rating of 5 A (UL) and 4 A (IEC), with a test current of 4 A and test voltage of 250 V UL/CSA and 32 V IEC. Operating temperature ranges from -40 °C to 105 °C. The connector provides IP68 sealing, is UV resistant, and supports 32 contacts in a polyamide insert, making it suitable for harsh environments and reliability-critical automation installations.
Yes. The UTS6JC1832PY is rated IP68 with IP69K compatibility, has UV resistance, and a sealing gland backshell designed for washdown and outdoor use. Its material and gasket design minimize ingress from water, dust, and harsh chemicals, helping ensure uptime in robotic cells, outdoor machinery, and food-processing environments.
The connector meets UL 1977, IEC 61984, and CSA-C22.2 No. 182.3 standards. These certifications confirm safety, performance, and regulatory compliance for industrial connectors, facilitating global procurement and reducing qualification time for equipment deployed across multiple regions.
With 250 mating cycles, durable polyamide inserts, and robust IP68/69K sealing, the connector offers long service life and lower maintenance costs. Its dense 32-position design reduces harness complexity and panel space, contributing to faster installation, reduced downtime, and improved return on investment in automation projects and capital equipment upgrades.
