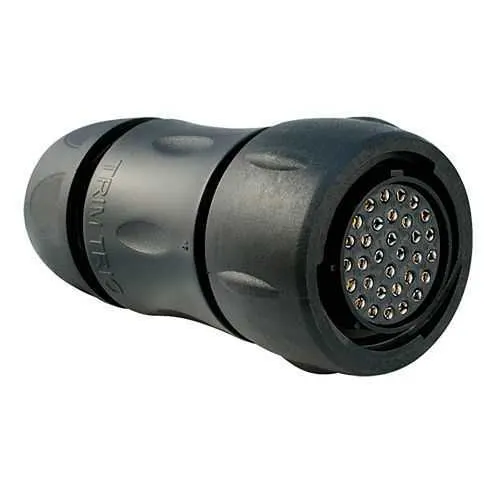

Eaton UTS6JC1832S Connector - 32-Position IP68/69K
Part Number: UTS6JC1832S
Quick Summary
The Eaton Souriau UTS6JC1832S waterproof IP68/69K connector provides reliable sealing for harsh industrial equipment. Engineers frequently battle moisture ingress, unplanned downtime, and costly field repairs when selecting sealed connectivity. With IP68/69K protection and certifications such as IEC 61984, UL 1977, and CSA, it meets demanding safety and performance standards. Its 32-position layout, 1/3 bayonet coupling, and sealing gland backshell support fast, reliable mating for drives, robotics, and outdoor equipment. This combination delivers robust performance while enabling scalable connectivity for modern industrial automation and mobile machinery.
Product Information
Extended Description
UTS6JC1832S Eaton: Plastic plug, with cable gland backshell, for 32 female contacts, IP68/69K; UTS6JC1832S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1832S
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.6 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline Resistant against mineral oil Resistant against basic bath
Test current
4 A IEC 5 A UL 4 A CSA
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
IP68/69K sealing with a Sealing Gland backshell provides superior protection against water, dust, and chemical exposure, reducing the risk of corrosion and electrical faults. This translates into longer service intervals and lower maintenance costs on mobile machinery and outdoor installations where ingress is a constant concern. In practice, the UTS6JC1832S supports 32 crimped contacts and a 4 A IEC / 5 A UL current rating, enabling reliable power and signal transmission in compact packages for industrial robots and conveyor systems. The 1/3 bayonet coupling delivers fast mating and vibration resistance, simplifying field service and minimizing downtime in harsh environments. A straight plug and polyamide insert support high-density layouts while maintaining durable mating performance under dynamic loads typical of automation equipment. The product’s UV resistance, oil and chemical exposure tolerance, and 500-hour salt spray resistance translate to longer life in outdoor, fleet, or offshore applications. Compatibility with Souriau UTS series backshells and connector options ensures a seamless upgrade path for legacy systems, reducing capital expenditure and streamlining procurement for system integrators. Finally, operating from -40 °C to 105 °C, this connector accommodates a wide range of ambient conditions found in industrial plants, outdoors, and remote locations, while meeting RoHS and REACH requirements for responsible sourcing and compliance.
Get a Quick Quote for a Eaton UTS6JC1832S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1832S?
Enquire Now
FAQs
Yes. The UTS6JC1832S uses a 32-position layout with a straight plug configuration and a 1/3 bayonet coupling, enabling quick, secure mating. The backshell is a sealing gland type, and the connector is designed for crimp contact delivery, with a socket (female) contact arrangement. This combination supports fast field assembly and reliable retention in vibration-prone environments.
Key specs include a current rating of 4 A IEC / 5 A UL, test current 4 A IEC / 5 A UL / 4 A CSA, and test voltage 250 V CSA / 250 V UL / 32 V IEC. It provides IP68 protection, operates from -40 °C to 105 °C, and offers 250 mating cycles. The connector’s insert material is polyamide, with a plastic shell and a 18-shell size, delivering high-density connectivity in rugged settings.
The UTS6JC1832S complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, supporting safety and interoperability in North American and international markets. RoHS and REACH considerations are noted in the broader environmental resistance statements. For regulated environments, confirm project-specific standards and ensure documentation is available for audits and supplier qualification.
The connector is rated for up to 250 mating cycles, which supports frequent maintenance schedules in automation cells or mobile equipment. With IP68/69K sealing, backshell gland protection, and rugged materials, it minimizes the risk of ingress-related faults during routine connect/disconnect operations in harsh environments.
Best-fit applications include outdoor machinery, mobile automation, robotics, conveyors, and industrial control panels in environments with moisture, dust, and temperature variability. The 32-pin layout, high-density design, and rugged sealing support complex signal and power needs in compact form factors, while meeting certified standards for safety and reliability.
