Eaton UTS6JC1832SW Plastic Connector - IP68/69K
Part Number: UTS6JC1832SW
Quick Summary
The Eaton UTS6JC1832SW Plastic Connector is a waterproof IP68/69K plug for rugged automation and mobile equipment. End users struggle with water ingress, mis-mating, and costly downtime in washdown or outdoor environments. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS and REACH supporting safety and sustainability. The 32-contact arrangement and backshell with a sealing gland enable clean, high-density connectivity for sensors, actuators, and control modules, while the 1/3 bayonet coupling speeds field assembly. With operating temperatures from -40 to 105 C and a 250 mating cycle rating, it stands up to harsh manufacturing environments. Designed for industrial automation, it delivers reliable sealing and easy installation, helping manufacturers reduce maintenance costs and extend service life.
Product Information
Extended Description

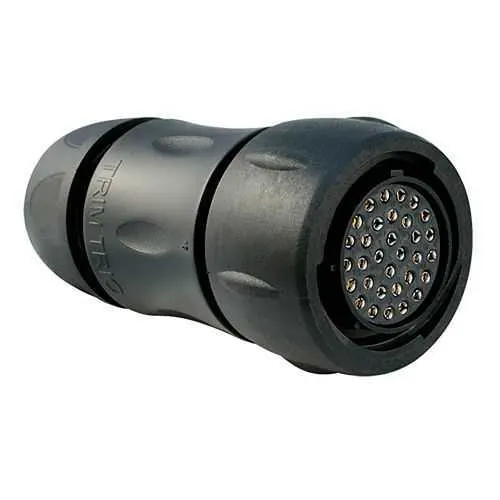

UTS6JC1832SW Eaton: Plastic plug, with cable gland backshell, for 32 female contacts, IP68/69K, keying W; UTS6JC1832SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1832SW
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.6 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against mineral oil Resistant against gasoline Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A IEC 5 A UL 4 A CSA
Test voltage
32 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature: IP68/69K sealing with a backshell sealing gland provides robust ingress protection against water, dust and chemicals. Business Impact: minimizes unplanned downtime and extends equipment life, lowering maintenance costs. Application: suitable for washdown environments in food processing, outdoor substations, and mobile machinery. Feature: 32-position insert and 32 contacts deliver high-density connectivity. Business Impact: reduces wiring complexity, lowers assembly time, and supports scalable control architectures. Application: sensor networks, multi-actuator banks, and compact control panels. Feature: 1/3 bayonet coupling and straight plug enable quick, secure mating. Business Impact: faster field assembly, improved vibration resistance, and fewer mis-matings. Application: assembly lines and in-field installations. Feature: operating temperature range from -40 to 105 C. Business Impact: wide ambient tolerance reduces part proliferation and sparepart costs. Application: automotive, outdoor equipment, and industrial automation. Feature: mating cycles rated at 250. Business Impact: longer lifecycle and lower total cost of ownership. Application: high-cycle robotics and repetitive connect/disconnect cycles. Feature: polyamide insert and plastic shell offer chemical resistance and lightweight durability. Business Impact: easier handling, corrosion resistance, and extended service life. Application: harsh environments with exposure to oils, fuels, or solvents. Feature: compliance with RoHS, REACH, IEC 61984, UL 1977, and UL94 V0. Business Impact: regulatory alignment simplifies procurement and qualification. Application: regulated industries requiring standard-compliant components.
