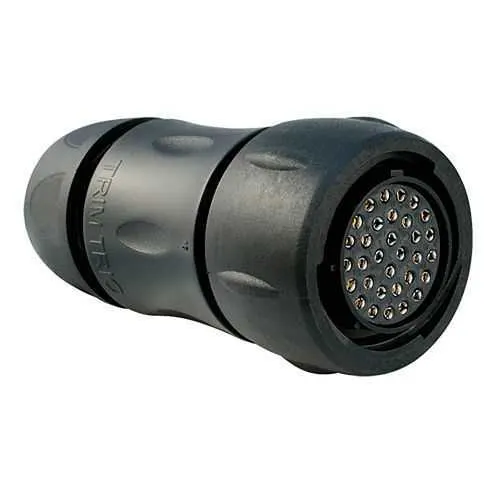

Eaton UTS6JC1832SX Plug - IP68/69K Sealed Connector
Part Number: UTS6JC1832SX
Quick Summary
Eaton UTS6JC1832SX Plug enables reliable, waterproof electrical connections in challenging environments. Engineers often struggle with moisture ingress, vibration, and misalignment that degrade performance and drive maintenance costs. This connector carries IP68/69K protection and is compliant with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring robust field operation. The 32‑way, plastic UTS design delivers secure seals and straightforward installation, reducing downtime. With a backshell gland, straight plug orientation, and 1/3 bayonet coupling, it provides rugged performance and long-term value for industrial automation, mobile equipment, and outdoor applications. In short, it combines certified safety with practical deployment benefits for design engineers and procurement teams alike.
Product Information
Extended Description
UTS6JC1832SX Eaton: Plastic plug, with cable gland backshell, for 32 female contacts, IP68/69K, keying X; UTS6JC1832SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1832SX
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.6 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4 A CSA 4 A IEC 5 A UL
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature: IP68/69K rated plastic connector with sealing gland backshell; Business Impact: delivers reliable ingress protection under extended immersion and exposure to harsh environments, reducing field failures and warranty costs; Application: outdoor equipment, construction sites, and vehicles where moisture and dust resistance is mandatory. Feature: 32 contact positions in a compact 81.3 mm length; Business Impact: enables high-channel density without increasing panel footprint, accelerating harness routing and assembly in control cabinets. Application: machine builds and packaging lines requiring 32 circuits in tight spaces. Feature: 1/3 bayonet coupling and straight plug design; Business Impact: simplifies mating and disconnects during maintenance while maintaining vibration resistance for high‑shock environments. Application: automated conveyors and robotics with frequent maintenance cycles. Feature: Backshell type Sealing Gland; Business Impact: enhances seal integrity at the cable entry and minimizes water ingress while wiring, reducing rework. Application: equipment exposed to washdowns or outdoor weather. Feature: 32‑contact, crimp contact delivery with 250 mating cycles; Business Impact: supports long service life with predictable reliability and lower life‑cycle costs. Application: aerospace, industrial machinery, and agriculture equipment. Feature: Operating range -40 °C to 105 °C and RoHS/REACH compliant; Business Impact: ensures consistent performance across temperature swings and regulatory compliance to avoid product discontinuation. Application: harsh climate installations and global deployments. Feature: Meets multiple standards (UL 1977, CSA-C22.2 No.182.3, IEC 61984); Business Impact: simplifies supplier qualification and procurement by aligning with common electrical safety and performance benchmarks. Application: certified machinery builds and OEM assemblies across regions.
Get a Quick Quote for a Eaton UTS6JC1832SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1832SX?
Enquire Now
FAQs
For optimal performance, mount with the straight plug orientation and use the sealing gland backshell to maximize IP68/69K protection. Ensure crimp contacts are correctly sized for 32 conductors and follow standard torque guidance during mating to preserve seal integrity and mating cycles (up to 250).
The UTS6JC1832SX supports up to 4 A IEC and 5 A UL per contact, with a test voltage up to 32 V IEC and 250 V UL/CSA. It provides about 250 mating cycles, making it suitable for mobile equipment and machinery subject to frequent connect/disconnect cycles.
Yes. It is rated IP68 with IP69K compatibility, featuring a sealing gland backshell and plastic shell that resists UV, oil, and moisture exposure. Suitable for outdoor machinery, agricultural equipment, and damp industrial settings where robust ingress protection is essential.
The UTS6JC1832SX complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring electrical safety and performance across North American and international industries. This alignment simplifies supplier qualification and regulatory compliance for OEMs and integrators.
By delivering 32‑circuit density, rapid mating with 1/3 bayonet coupling, and long-term seal integrity, the connector reduces assembly time, minimizes field failures, and lowers maintenance costs. Its rugged design and certifications support longer device lifespans and predictable uptime in harsh environments.
