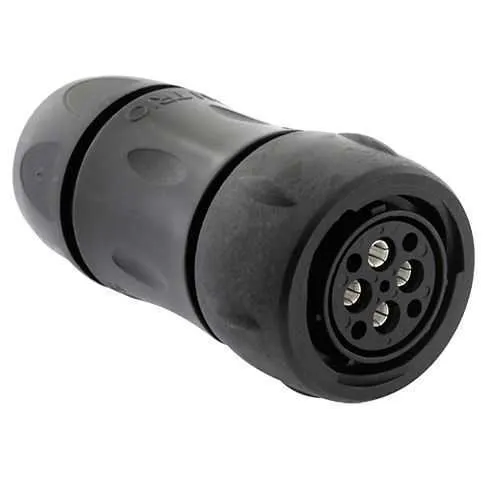

Eaton UTS6JC183G1S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC183G1S
Quick Summary
The Eaton Souriau UTS6JC183G1S is a plastic waterproof IP68/69K connector for rugged industrial applications. Engineers often wrestle with moisture ingress, washdown exposure, and cable strain that lead to downtime. Key certifications and standards matter, including IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, ensuring safety and interchangeability. With a ground cavity layout and first mate last break capability, it simplifies harness assembly and maintenance while meeting stringent reliability targets. Designed for automation, robotics, and outdoor equipment, this solution balances performance, durability, and total cost of ownership. Its IP68 rating and robust temperature range -40 to 105 °C support long service life in demanding environments.
Product Information
Extended Description
UTS6JC183G1S Eaton: Plastic plug, with cable gland backshell, for 4 female contacts, IP68/69K; UTS6JC183G1S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC183G1S
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
32 A IEC 23 A UL
Fitted with:
Layout with ground cavity First mate last break capability Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Fire & Smoke
Environmental resistance
Resistant against oil Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
23 A CSA 23 A UL 32 A IEC
Test voltage
300 V IEC 600 V UL 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #8 power
4
Salt spray
500 hour
Feature: IP68/IP69K protection plus Sealing Gland backshell delivers reliable sealing in washdown and harsh environments → Business Impact: Reduces moisture ingress and field maintenance while extending service life → Application: Outdoor machinery, food processing, marine equipment. Feature: 4 female contacts in a 3G1 layout with crimp contact type improves wiring density and connector interchangeability → Business Impact: Minimizes harness complexity and supports quicker assembly on production lines → Application: Control panels, sensors and actuator networks. Feature: 1/3 Bayonet coupling and straight backshell enable fast mating and dependable seals even in tight spaces → Business Impact: Shortens downtime during maintenance and reconfiguration while preserving seal integrity → Application: Robotic arms, mobile equipment, and installable field assemblies. Feature: Operating temperature range -40 °C to 105 °C with UL94 V0, RoHS and REACH compliance → Business Impact: Ensures reliable performance across extreme temperatures and regulatory conformity → Application: Outdoor automation, vehicle systems, and industrial environments. Feature: 250 mating cycles, polyamide insert, and ground cavity layout with optional Last Mate First Break → Business Impact: Durable lifecycle and flexible harness design reduce replacement costs and retrofit time → Application: High-cycle automation, machinery controls, and power distribution within rugged plants.
Get a Quick Quote for a Eaton UTS6JC183G1S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC183G1S?
Enquire Now
FAQs
The plug uses a Sealing Gland backshell with a straight backshell, designed for straightforward installation and reliable sealing in washdown environments. It supports an N orientation and a 3G1 layout with 4 crimp contact positions, making it easy to integrate into standard harnesses.
Current rating is 32 A IEC with a test current of 23 A CSA/UL and a test voltage of 300 V IEC and 600 V UL/CSA. This combination supports demanding automation and equipment controls while maintaining safe operation.
Yes. It is IP68 rated with IP68/69K protection, constructed from plastic with a polyamide insert, and tested for resistance to oils, UV exposure, and various chemicals. The operating temperature range of -40 °C to 105 °C supports outdoor and industrial use.
The connector is rated for 250 mating cycles, uses crimp contacts, and features a ground cavity layout with first mate last break capability as an option. These properties help minimize maintenance, reduce downtime, and extend service intervals in high-cycle automation.
Compliances include IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, with additional RoHS and UL94 V0 ratings. These certifications support regulatory compliance and safe, reliable operation across global applications.
