Eaton UTS6JC18LCN Connector - IP68/69K
Part Number: UTS6JC18LCN
Quick Summary
UTS6JC18LCN is a plastic waterproof IP68/69K connector for rugged fiber optic field connections in harsh industrial environments. Many assemblies struggle with sealing, vibration, and corrosion in outdoor or hazardous areas. It meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with robust IP68 protection and UL94 V0 flammability, ensuring safety and reliability in demanding applications. This solution also delivers lightweight, easy-installation benefits for industrial automation, offering long service life and reduced maintenance costs through proven sealing and compatibility with LC fiber optic layouts.
Product Information
Extended Description

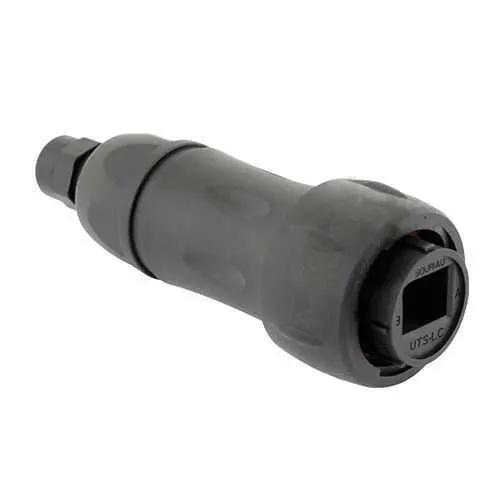

UTS6JC18LCN Eaton: Plastic plug, with cable gland backshell, 2 fiber contacts, IP68/69K; UTS6JC18LCN
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC18LCN
Product Length/Depth
112 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
52.6 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Environmental conditions
REACH RoHS Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against acid bath
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact type
Fiber Optic
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
LC
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing with a sealing gland backshell minimizes ingress of water, dust, and oils, reducing downtime and maintenance costs in outdoor equipment and wet environments. Application: outdoor conveyors and machinery in harsh plants. Feature → 2 fiber contacts in LC layout delivers high-speed data transmission with a compact form factor, enabling smaller cabinet footprints and faster commissioning. Application: machine controllers and robotics in factory floors. Feature → 1/3 bayonet coupling enables quick, tool-free mating, speeding field installation and servicing while maintaining a secure connection. Application: rapid swaps in busy production lines. Feature → Operating temperature range -40 to 105 °C ensures performance across extreme climates, preventing signal degradation and unexpected failures. Application: temperate and outdoor process plants. Feature → Mating cycles at 250 supports durable lifecycle performance, reducing replacement cycles and total cost of ownership. Application: long-term automation projects. Feature → RoHS/REACH compliant and UL 94 V0 rated plastics provide regulatory peace of mind while withstanding UV exposure and chemical environments. Application: European and global equipment designs. Feature → Backshell type Sealing Gland and straight orientation provide reliable environmental sealing and predictable installation geometry. Application: control panels and field junctions in rugged settings.
Get a Quick Quote for a Eaton UTS6JC18LCN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC18LCN?
Enquire Now
FAQs
Yes. The UTS6JC18LCN is part of Eaton's Souriau UTS family and uses a 1/3 bayonet coupling with a straight plug and sealing gland backshell. It accommodates LC fiber layouts, with a 112 mm length and 41.3 mm width/height. Orientation is N, and it ships with a connector backshell for secure, tool-free field mating and reliable environmental sealing.
The unit provides two fiber optic contacts in an LC layout designed for rugged automation. It achieves IP68 sealing, supports operating temperatures from -40 to 105 °C, and offers up to 250 mating cycles, delivering dependable high-speed transmission while resisting UV, oil, gasoline, and basic bath exposures.
Absolutely. With IP68/IP69K-level sealing, a sealing gland backshell, and resistance to salt spray (500 hours) plus environmental protections (REACH, RoHS), the UTS6JC18LCN is well-suited for outdoor conveyors, exposed wiring, and equipment in challenging environments, maintaining performance despite moisture, dust, and temperature fluctuations.
The connector complies with IEC 61984 and UL 1977, along with CSA-C22.2 No.182.3. It also features UL94 V0 flammability and environmental compliance (REACH and RoHS). These certifications support safe integration into global automation designs and certified equipment.
With 250 mating cycles, robust IP68 sealing, and a lightweight plastic housing, the connector reduces replacement frequency and maintenance downtime. Quick-mating design minimizes field service time, while regulatory compliance reduces rework risk. Overall, expect lower lifecycle costs and improved uptime in automated systems.
