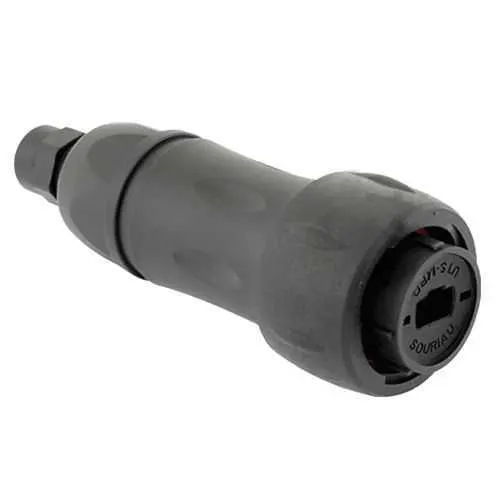

Eaton UTS6JC18MPN UTS Series Connector - IP68
Part Number: UTS6JC18MPN
Quick Summary
UTS6JC18MPN is a plastic waterproof IP68/69k fiber optic connector designed for rugged industrial environments. Moisture ingress, dust, and vibration drive downtime and maintenance costs in demanding automation installs. It complies with IP68/IP69K protection and approvals such as UL 1977 and IEC 61984 (CSA-C22.2 No.182.3), ensuring safety and reliability. With its MPO layout, sealing gland backshell, and 1 fiber contact, it enables quick field mating while maintaining sealing integrity. These features translate to faster assembly, reduced service trips, and greater uptime in harsh production lines.
Product Information
Extended Description
UTS6JC18MPN Eaton: Plastic plug, with cable gland backshell, 1 fiber contacts, IP68/69K; UTS6JC18MPN
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC18MPN
Product Length/Depth
112 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
48.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Environmental conditions
Flammability rating UL94 V0 REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact type
Fiber Optic
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
MPO
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
1
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K rated plastic housing with a Sealing Gland backshell protects fiber connections from moisture, dust and chemicals, reducing maintenance intervals and unplanned downtime in outdoor or dusty environments. Application: rugged automation panels and outdoor machinery requiring durable interconnects. Feature → Business Impact → Application: MPO layout with 1 fiber contact and straight plug enables compact, straightforward routing and precise alignment, cutting installation time and error rates. Application: control cabinets and distributed I/O networks in harsh facilities. Feature → Business Impact → Application: 250 mating cycles and robust materials provide long service life and predictable performance, lowering replacement costs. Application: mission-critical fiber interconnects in packaging, mining, and water/energy sectors. Feature → Business Impact → Application: broad operating temperature range (-40 to 105 °C) and UV/oil/acid resistance ensure reliability across cold starts and hot environments. Application: outdoor equipment, offshore platforms, and remote automation sites. Feature → Business Impact → Application: backshell sealing gland design with connector delivery supports reliable sealing during field assembly, reducing warranty claims. Application: quick field upgrades and scalable network expansions in evolving production lines.
Get a Quick Quote for a Eaton UTS6JC18MPN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC18MPN?
Enquire Now
FAQs
For outdoor or harsh indoor environments, mount the straight plug with the Sealing Gland backshell in orientations that align with the MPO fiber layout. Use proper strain relief and ensure the connector is mated within protected housings to maintain IP68/69K integrity. The device supports -40 °C to 105 °C operation and 250 mating cycles, minimizing downtime in automation cabinets.
The UTS6JC18MPN provides a mating cycle rating of 250, indicating durable life in repeated connect/disconnect scenarios. This reduces replacement frequency in service-heavy environments and supports planned maintenance schedules rather than reactive field fixes, improving overall uptime and lowering lifecycle costs.
Yes. The IP68/69K rated plastic housing, UV resistance, and resistance to acid, oil, mineral oil, and gasoline make it well-suited for outdoor automation panels, offshore installations, mining equipment, and other demanding applications requiring reliable fiber interconnects.
The UTS6JC18MPN complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3. These certifications support safety, interconnect reliability, and regulatory compliance in many regions, easing supplier qualifications and system approvals for industrial automation projects.
Field mating is simplified by the MPO layout and straight plug design, reducing installation time. The sealing gland backshell enhances reliability, cutting maintenance trips, and the robust environmental resistance lowers total cost of ownership across rugged production lines.
