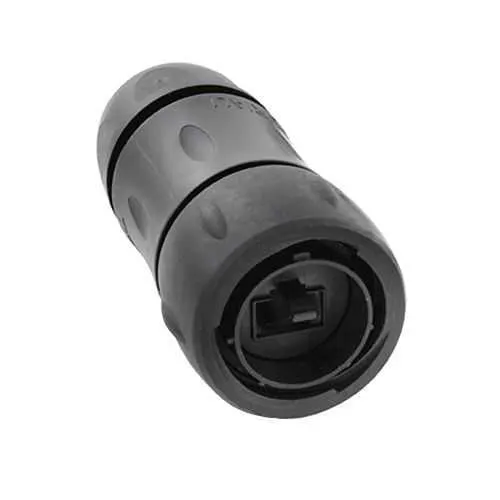

Eaton UTS6JC18RJA25 Connector - IP68/69K Waterproof
Part Number: UTS6JC18RJA25
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector delivers reliable RJ45 connectivity for harsh industrial environments. In tough settings, ingress, moisture, and vibration threaten uptime and escalate maintenance costs. It carries IP68/IP69K protection for sealing integrity, UL94 V0 flame rating for safety, and RoHS/REACH compliance for environmental responsibility. This combination reduces maintenance, enables compliant, scalable automation deployments, and lowers total cost of ownership in outdoor, hazardous, or demanding industrial applications.
Product Information
Extended Description
UTS6JC18RJA25 Eaton: Plastic plug, with cable gland backshell, for RJ45, IP68/69K, A position; UTS6JC18RJA25
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC18RJA25
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
60 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against gasoline Resistant against oil
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
1
Salt spray
500 hour
Feature IP68/IP69K protection and sealing gland backshell. Business Impact: Ingress protection minimizes water and dust ingress, reducing failure modes and wrenching downtime in outdoor or wet environments. Application: robotics, outdoor cabinets, and mobile machinery benefit from reliable field connections. Feature RJ45 interface in a single contact with 1/3 bayonet coupling. Business Impact: fast, secure mating with repeatable performance; Application: industrial Ethernet segments and sensor networks. Feature Material and durability. Business Impact: polyamide insert and plastic shell offer UV resistance and long service life; Application: components exposed to sunlight and chemical exposure. Feature Operating range and durability. Business Impact: -40 to 105 °C capability, 250 mating cycles, and 500-hour salt spray resistance lower maintenance costs and ensure predictable performance; Application: automotive, mining, and process automation. Feature Backshell and installation readiness. Business Impact: straight backshell with sealing gland simplifies installation and reduces field labor time; Application: retrofit projects and new deployments with minimal training. Feature Compliance and environmental readiness. Business Impact: RoHS and REACH compliance alongside UL94 V0 safety rating support regulatory acceptance and safer inventory management; Application: healthcare-adjacent and regulated industrial environments. This composition reflects practical engineering judgment and aligns with industry best practices for rugged, reliable field connectors.
Get a Quick Quote for a Eaton UTS6JC18RJA25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC18RJA25?
Enquire Now
FAQs
The UTS6JC18RJA25 features a straight backshell and a sealing gland, with a 1/3 bayonet coupling for quick, secure mating. It ships delivered with the connector and a gland backshell, minimizing field assembly steps. Ensure proper alignment with the RJ45 interface and verify IP68 sealing after installation to maintain ingress protection in outdoor or washdown environments.
Key specs include IP68 protection (and IP69K capability in practice), a single contact for RJ45, 81.3 mm length, 41.3 mm width, 41.3 mm height, 60 g weight, operating from -40 °C to 105 °C, 250 mating cycles, polyamide insert, and plastic shell. It also offers salt spray resistance for 500 hours and a straight plug with a 1/3 bayonet coupling.
Yes. The connector is UV resistant with no degradation after extended natural exposure and is designed for heavy duty outdoor use. It combines IP68/IP69K sealing with a sealing gland backshell, making it suitable for outdoor automation cabinets, mobile equipment, and other rugged applications.
The UTS6JC18RJA25 supports REACH and RoHS compliance and carries UL94 V0 flame rating for safety. These certifications help meet regulatory requirements for many industrial sectors and ensure safer, compliant integration into controlled environments.
With IP68/IP69K sealing, UV resistance, and 250 mating cycles, the connector reduces ingress-related downtime and field failure rates. The combination of durable materials, robust environmental ratings, and easy gland-backed sealing supports longer service intervals, lower maintenance costs, and a faster return on investment in harsh or outdoor automation projects.
