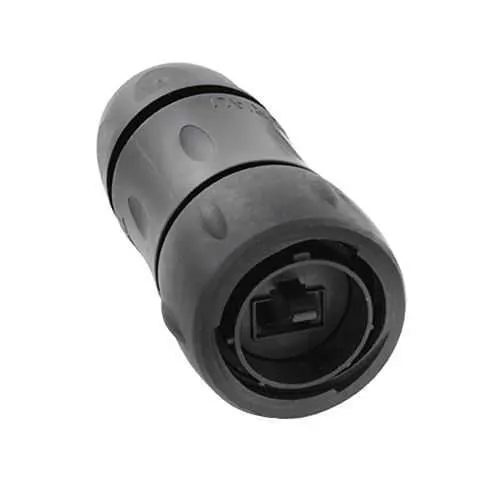

Eaton UTS6JC18RJN25 Connector - IP68/IP69K
Part Number: UTS6JC18RJN25
Quick Summary
Eaton Souriau UTS6JC18RJN25 is a plastic waterproof IP68/69K connector for rugged field Ethernet. In outdoor or washdown environments, moisture, dust, and oil can compromise connections; this product helps prevent costly downtime by maintaining signal integrity. It carries IP68/IP69K protection and RoHS and UL94 V0 compliance, ensuring durability and safety in harsh installations. For automation projects, its sealed backshell, robust materials, and compact 81.3 mm length deliver reliable, long-term performance while supporting easy integration with RJ45 interfaces and standard mounting. This combination of protection, compliance, and ease of installation translates to lower maintenance costs and higher line efficiency.
Product Information
Extended Description
UTS6JC18RJN25 Eaton: Plastic plug, with cable gland backshell, for RJ45, IP68/69K, N position; UTS6JC18RJN25
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC18RJN25
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
60 g
Environmental conditions
REACH Fire & Smoke RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
1
Salt spray
500 hour
The UTS6JC18RJN25 features IP68/IP69K sealing with a sealing gland backshell, delivering superior protection against water, dust, and chemical exposure. This reduces field failures and maintenance costs in conveyors, outdoor equipment, and washdown environments, enabling longer service intervals and higher uptime. The 1/3 bayonet coupling and straight plug design allow fast, tool-free mating, minimizing installation time and labor for panel or harness assemblies used in automated lines and mobile equipment. With 250 mating cycles and an operating range from -40 °C to 105 °C, the connector supports demanding industrial cycles and extreme temperatures, delivering predictable performance in harsh environments. The polyamide insert and plastic shell offer chemical resistance and light weight, while the backshell backstops moisture ingress at the entry point, improving long-term reliability for sealed RJ45 connectivity. These characteristics address common objections about ruggedness and maintenance by providing a proven lifecycle in automation deployments and outdoor installations.
Get a Quick Quote for a Eaton UTS6JC18RJN25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC18RJN25?
Enquire Now
FAQs
Install by aligning the straight plug with the mating receptacle, engage the 1/3 bayonet coupling until it seats, then secure the cable with the gland backshell to ensure a water-tight seal. Verify the IP68 rating after installation and test continuity to confirm signal integrity.
Yes. The UTS6JC18RJN25 is designed for RJ45 compatibility within the UTS series, providing a sealed plug option suitable for rugged industrial Ethernet and fieldbus deployments.
The connector operates from -40 °C to 105 °C and supports up to 250 mating cycles, offering reliable performance in extreme industrial temperatures and frequent connection/disconnection cycles.
It carries IP68/IP69K protection, RoHS compliance, and UL94 V0 flammability rating, with additional resilience against UV exposure and salt spray, making it suitable for demanding outdoor and chemical environments.
By delivering superior sealing, long lifecycle (250 mating cycles), and reduced maintenance from UV/oil/acid resistance, this connector lowers replacement frequency and downtime, improving uptime and overall lifecycle cost in outdoor automation and washdown applications.
