Eaton UTS6JC18X2M3S Plastic Waterproof IP68/69K Connector - IP68/69K
Part Number: UTS6JC18X2M3S
Quick Summary
Eaton UTS6JC18X2M3S is a plastic waterproof IP68/69K connector designed to seal power and signal lines in harsh industrial environments. It helps prevent field failures by delivering reliable sealing and robust mating under vibration and temperature extremes. This family aligns with CSA-C22.2 No.182.3, UL 1977, and IEC 61984 compliance, supporting safety and interoperability across markets. For engineers and procurement professionals, the value is in predictable lifecycle performance, reduced maintenance, and straightforward integration with Souriau UTS series backplanes, enabling faster, compliant installations in automation panels, outdoor equipment, and heavy-duty machinery.
Product Information
Extended Description

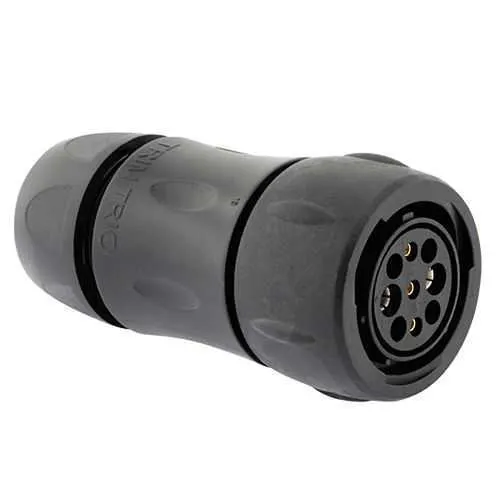

UTS6JC18X2M3S Eaton: Plastic plug, with cable gland backshell, for 5 female contacts, IP68/69K; UTS6JC18X2M3S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC18X2M3S
Product Length/Depth
81.3 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
56.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
32 A IEC 44 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath
Test current
32 A IEC 34 A CSA 44 A UL
Test voltage
300 V IEC 600 V CSA 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
X2M3
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
3
Number of cavity #8 power
2
Salt spray
500 hour
IP68/IP69K sealing with a sealing gland backshell provides moisture and dust protection, reducing downtime in outdoor enclosures and washdown environments. This translates to lower maintenance costs and higher equipment availability in industries such as mining, water treatment, and outdoor automation. The 5 contacts (3 x #16, 2 x #8 power) deliver compact power and signal distribution within a single plug, saving panel footprint and simplifying harness routing for faster assembly and fewer wiring errors in harsh environments. A mating cycle rating of 250 supports frequent connections, extending service life and lowering replacement intervals for robotics, conveyors, and rugged mobile equipment. Operating temperatures from -40 to 105 °C ensure reliable performance in extreme climates, improving uptime in cold storage, foundries, and outdoor installations. Current ratings of 32 A IEC, 34 A CSA, and 44 A UL, with appropriate voltage ratings, provide design confidence for drives, sensors, and control circuits, while 1/3 bayonet coupling and straight backshell streamline installation in tight spaces and maintenance access.
Get a Quick Quote for a Eaton UTS6JC18X2M3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC18X2M3S?
Enquire Now
FAQs
The UTS6JC18X2M3S uses Souriau UTS series mating interfaces and is delivered with a Sealing Gland backshell. It supports standard backshell configurations and is compatible with typical cable glands used on IP68/69K rated connectors, enabling straightforward field assembly and robust sealing in harsh environments.
The connector provides a current rating of 32 A IEC, 34 A CSA, and 44 A UL with voltages up to 300 V IEC and 600 V UL. It features five contacts (three #16 and two #8 power) and a 1/3 bayonet coupling for secure, vibration-resistant connections suitable for drives, sensors, and control circuits in automation panels.
Yes. It is rated IP68 and designed to withstand moisture ingress and dust in outdoor automation, mining, and outdoor equipment. The sealing gland backshell and plastic shell provide durable resistance to UV, humidity, and temperature variations typical of rugged field deployments.
The connector carries CSA-C22.2 No.182.3, UL 1977, and IEC 61984 compliances, which support safety, interoperability, and regulatory acceptance across North American and international markets. For exact certification scopes, consultations with Eaton are recommended to confirm applicability to your application and regional requirements.
With mating cycles rated at 250 and a robust IP68/69K seal, the UTS6JC18X2M3S offers long service life under frequent connections and disconnections, reducing replacement frequency and maintenance downtime. Its rugged design minimizes leak risks in washdown zones and high-dust areas, delivering lower total cost of ownership in automation, material handling, and outdoor equipment.
