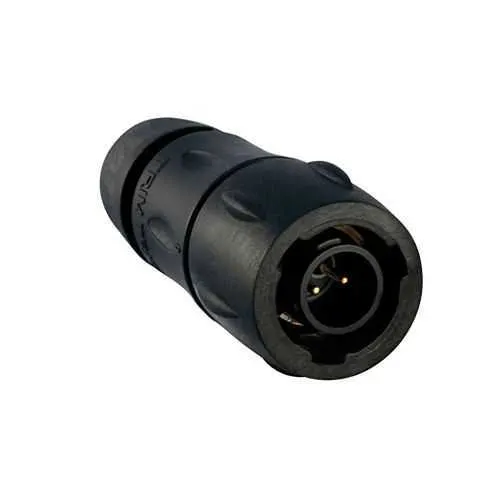

Eaton UTS6JC8E2P Connector - IP68/69K Waterproof
Part Number: UTS6JC8E2P
Quick Summary
UTS6JC8E2P is a plastic waterproof IP68/69K connector designed for rugged field connections in harsh environments. It addresses moisture ingress and unreliable mating that can drive costly downtime in machinery and automation systems. The device carries CSA-C22.2 No.182.3, IEC 61984, and UL 1977 certifications, with ROHS exemption 6.c, and an IP68 rating that withstands demanding washdown and exposure. This 2-position plug from the Souriau UTS series combines a compact 54 mm length with straight backshell and 1/3 bayonet coupling for quick field assembly. By offering gold-plated contacts and a durable neoprene insert, it delivers reliability, easier maintenance, and lower total cost of ownership for industrial equipment.
Product Information
Extended Description
UTS6JC8E2P Eaton: Plastic plug, with cable gland backshell, with 2 male solder contacts, IP68/69K in unmated conditions; UTS6JC8E2P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E2P
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.2 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Resistant against basic bath
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
Feature: IP68/69K plastic waterproof design with a 2-position plug and sealed gland backshell. Business Impact: Delivers proven ingress protection and long-term reliability in washdown environments, reducing unplanned downtime and service calls. Application: Food processing, outdoor controls, and mobile machinery benefit from extended service life and lower maintenance costs. Feature: 7 A current rating, 250 V, and 250 mating cycles. Business Impact: Supports typical automation and control loads with predictable lifecycle costs and minimal replacement intervals. Application: Conveyor motors, sensors, and control panels in harsh environments. Feature: 1/3 bayonet coupling with straight plug and gold-plated solder cup contacts. Business Impact: Faster, tool-free mating and superior contact reliability, lowering installation time and field errors. Application: Field assemblies in compact control boxes and remote sensors. Feature: Neoprene insert, backshell sealing gland, and operating range -40 to 105 °C. Business Impact: Maintains performance across wide temperatures and chemical exposure, reducing warranty risk. Application: Outdoor machinery, heavy equipment, and equipment subject to oil, UV, and temperature variability. Feature: Cable diameter range 1.5–6.5 mm and 8-shell size compatibility. Business Impact: Flexible cabling options with minimal rework, simplifying procurement and inventory. Application: Custom harnesses for industrial robotics and portable power units.
Get a Quick Quote for a Eaton UTS6JC8E2P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E2P?
Enquire Now
FAQs
UTS6JC8E2P uses a straight 1/3 bayonet mating configuration with a backshell sealing gland, designed to integrate with Souriau UTS series accessories. It is a 2-position plug with solder cup contacts, compatible with standard 8-shell size and Neoprene insert components. This setup simplifies field upgrades and minimizes rework when replacing older IP68/69K connectors.
The connector is rated for 7 A (IEC/UL) with a test voltage of 250 V (UL/CSA) and 32 V (IEC). It supports up to 250 mating cycles, providing a reliable lifecycle for intermittent to continuous-duty automation tasks. Gold-plated solder cup contacts ensure low contact resistance and durable signal integrity in challenging environments.
Ideal for harsh environments such as outdoor control panels, washdown areas, mobile machinery, conveyors, and robotic installations, UTS6JC8E2P combines IP68/69K protection with a compact 54 mm length. Its 2-pin configuration and bayonet coupling speed up field connections, reduce maintenance time, and improve overall equipment availability in demanding industrial settings.
UTS6JC8E2P complies with CSA-C22.2 No.182.3, IEC 61984, and UL 1977, with ROHS exemption 6.c. This means it meets applicable safety and compatibility requirements for electrical connectors used in North American and international markets, while some materials may be exempt from standard RoHS restrictions. Always confirm material declarations with the supplier for specific procurement needs.
The IP68/69K seal and robust materials reduce ingress-related failures, lowering maintenance costs and downtime. With 250 mating cycles and gold-plated contacts, the connector offers reliable long-term performance, decreasing spare-parts inventory and replacement cycles. Teams can achieve faster installation, better uptime, and a lower total cost of ownership in rugged automation environments.
