Eaton UTS6JC8E2PW Waterproof Connector - IP68/69K
Part Number: UTS6JC8E2PW
Quick Summary
The Eaton UTS6JC8E2PW waterproof connector provides reliable IP68/69K protection for harsh industrial environments. Installers often struggle with reliable sealing and cable ingress in wet or dusty plants. Certifications include UL 1977, CSA-C22.2 No.182.3, and IEC 61984, plus RoHS exemptions, ensuring compatibility with modern industrial safety standards. This Souriau UTS series component delivers robust performance in automation panels and outdoor equipment, offering plug-and-play installation and long service life. With a compact 54 mm length and a 2-contact configuration, it supports efficient, low-maintenance wiring in space-constrained control cabinets and rugged field installations.
Product Information
Extended Description

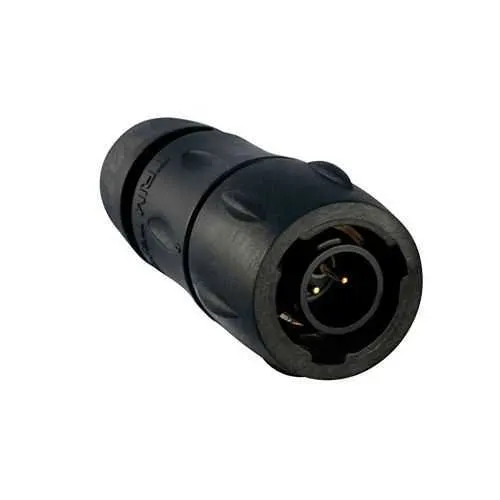

UTS6JC8E2PW Eaton: Plastic plug, with cable gland backshell, with 2 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E2PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E2PW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.2 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against oil Resistant against mineral oil
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
32 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
Feature: IP68/69K protection and rugged plastic shell. Business Impact: Prevents water, dust, and chemical intrusion, reducing downtime and maintenance costs in washdown or outdoor environments. Application: Ideal for automation cabinets, outdoor machinery, and harsh production floors. Feature: 7 A current rating with 32 V IEC and 250 V UL/CSA test voltages. Business Impact: Supports reliable power delivery for two-pin circuits while maintaining safety margins and regulatory compliance. Application: Control panels, sensor interfaces, and small motor load connections. Feature: 1/3 bayonet coupling with straight plug and sealing gland backshell. Business Impact: Quick, tool-free mating with secure sealing, minimizing installation time and ingress risk. Application: Field assemblies in tight spaces where speed matters. Feature: Gold-plated solder cup contacts and two-pin (2 cavities) configuration. Business Impact: Ensures low contact resistance, corrosion resistance, and durable signal/power transmission. Application: Industrial automation wiring where long-term reliability is critical. Feature: Broad environmental and material resilience—Neoprene insert, UV resistance, and broad operating range (-40 °C to 105 °C). Business Impact: Sustains performance across temperature swings and exposure to sunlight and chemicals, extending service life. Application: Outdoor equipment, remote sensors, and machinery in varied climates. Insight: Compatibility with UL 1977, CSA-C22.2 No.182.3, IEC 61984 and RoHS exemption supports easy sourcing, regulatory alignment, and reduced redesign risk in automation projects.
Get a Quick Quote for a Eaton UTS6JC8E2PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E2PW?
Enquire Now
FAQs
Begin with the straight plug orientation and align the 1/3 bayonet coupling. Feed the cable through the backseal gland, ensure the neoprene insert seats cleanly, and secure the gland. With a cable diameter range of 1.5 to 6.5 mm, the seal remains intact through vibration and washdown, delivering fast, reliable field installation with minimal tooling.
The connector supports a current rating of 7 A and voltage ratings of 32 V IEC and 250 V UL/CSA. With gold-plated solder cup contacts, you get low contact resistance and robust performance across ingress-prone environments, meeting typical automation and safety standards for sensor and control wiring.
Yes. It carries an IP68 rating (and 69K in unmated conditions), UV resistance, and resistance to oils and fuels, plus a broad operating temperature range of -40 °C to 105 °C. These features make it well suited for outdoor equipment, heavy machinery, and washdown areas where reliability matters.
The UTS6JC8E2PW complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption 6.c. This mix of standards supports safe integration into automation systems, medical or industrial equipment, and certified control panels, reducing risk during audits and supplier qualification.
It offers a compact 2-contact configuration with a sealing gland backshell and straight plug, delivering robust IP68/69K protection and quick mating via a 1/3 bayonet coupling. Gold-plated contacts and material resilience (neoprene insert) provide durable performance in harsh environments, while the small form factor aids in space-constrained installations.
