Eaton UTS6JC8E2PX Plastic Waterproof IP68/69K Connector - IP68/69K Sealing
Part Number: UTS6JC8E2PX
Quick Summary
UTS6JC8E2PX is a plastic waterproof IP68/69K connector for rugged industrial wiring. Engineers often struggle with moisture ingress, dust, and frequent field maintenance, which can drive costly downtime; this connector’s sealed backshell and robust housing help mitigate those challenges. It carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, with RoHS exemption 6.c, delivering broad regulatory coverage for automation projects. With a compact footprint and lightweight design, it streamlines panel routing and wiring harness integration, offering a reliable, cost-effective solution for harsh environments and demanding installations while supporting dependable machine connectivity across industrial automation and control systems.
Product Information
Extended Description

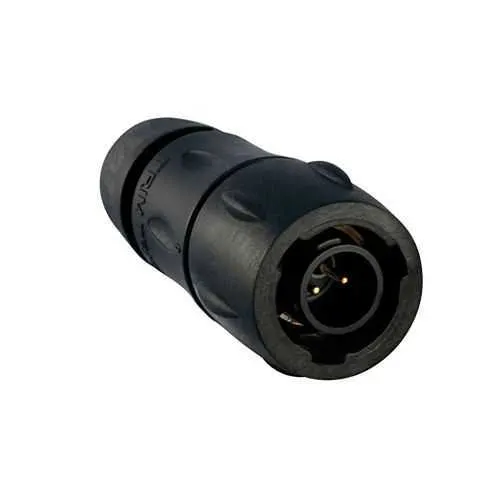

UTS6JC8E2PX Eaton: Plastic plug, with cable gland backshell, with 2 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC8E2PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E2PX
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.2 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
IP68/IP69K sealing in unmated condition provides superior ingress protection, reducing washdown-related failures and maintenance costs while enabling reliable outdoor or harsh-environment deployments. This translates to lower total cost of ownership and less downtime in critical manufacturing lines where cleanliness and moisture control are essential. The UTS6JC8E2PX uses two gold-plated solder cup contacts, delivering low contact resistance and stable electrical performance over many mating cycles; this improves signal integrity in sensors and actuators and reduces rework during field wiring. Quick-mate 1/3 bayonet coupling accelerates assembly on the shop floor and during panel wiring, supporting faster changeovers and streamlined service. The compact 54 mm length with a 22.4 mm footprint, combined with a plastic shell, enables easier integration into tight enclosures and lightweight harnesses, improving install efficiency. Operating temperature of -40 °C to 105 °C supports diverse industrial climates, while the 6.5 mm max cable diameter and 1.5 mm min diameter provide wiring flexibility for varied applications. With a 7 A current rating and 250 V capability, this plug handles common automation loads while maintaining safety margins in control panels. Designed for durability, it offers resistance to gasoline, mineral oil, acids, and UV exposure, ensuring reliability in mobile equipment and field service rigs. The product’s compliance with major standards (IEC 61984, UL 1977, CSA-C22.2 No.182.3) helps satisfy regulatory requirements across electronics, machinery, and automation projects, while the sealed backshell and keying X ensure proper orientation and mating integrity across connector assemblies.
