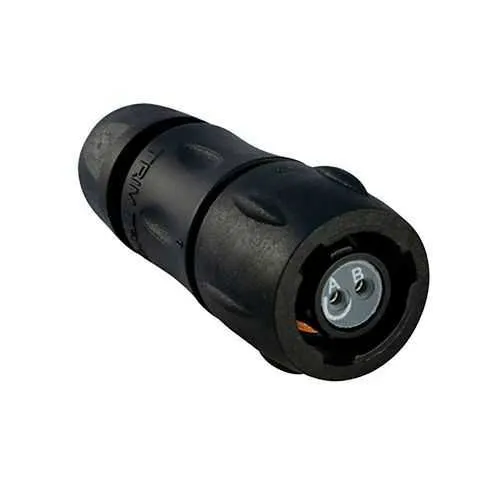

Eaton UTS6JC8E2S Plastic Waterproof IP68/69K Connector
Part Number: UTS6JC8E2S
Quick Summary
Eaton UTS6JC8E2S is a plastic waterproof IP68/69K connector used to join sensor and power circuits in rugged field wiring. In harsh environments, moisture ingress and vibrations can compromise reliability, so a sealed, durable solution is essential. It carries IEC 61984 and UL 1977 certifications, plus CSA-C22.2 No.182.3 and RoHS exemption 6.c, ensuring global compliance and long service life. With a 7 A rating and gold-plated solder contacts, it delivers dependable connectivity for industrial automation while enabling fast, economical installations on control panels and field devices.
Product Information
Extended Description
UTS6JC8E2S Eaton: Plastic plug, with cable gland backshell, with 2 female solder contacts, IP68/69K in unmated conditions; UTS6JC8E2S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E2S
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against oil Resistant against mineral oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing and UV resistance protect connections from moisture, dust, and sunlight, reducing downtime and maintenance costs in outdoor equipment. This translates to higher uptime and predictable operating expenses for wind farms, portable machinery, and outdoor automation cabinets. Application: field wiring and sensors in harsh environments where reliability matters. Feature → Business Impact → Application: 7 A current rating and 250 mating cycles provide sustained performance under frequent connects and disconnects, enabling maintenance routines to be executed faster with less risk of contact degradation. Application: conveyor lines, packaging machinery, and mobile equipment. Feature → Business Impact → Application: 1/3 Bayonet coupling enables quick, tool-free mating and unmating, cutting installation time by tens of minutes per panel and improving on-site efficiency. Application: remote I/O panels and automation hubs. Feature → Business Impact → Application: gold-plated solder cups and two 2-contact layout assure corrosion resistance and robust signal/power transfer, reducing field failure rates and warranty costs. Application: servo/stepper motors, sensors, and low-power actuators. Feature → Business Impact → Application: Neoprene insert and Sealing Gland backshell support broad cable compatibility (1.5–6.5 mm) for flexible wiring strategies, lowering part variety and inventory. Application: control cabinets and machinery with mixed cable diameters. Feature → Business Impact → Application: operating temperature range -40 °C to 105 °C and environmental resistance extend service life in cold climates, high heat, or vibration-heavy settings. Application: mining equipment, outdoor machinery, and agricultural gear. Feature → Business Impact → Application: 54 mm length, 22.4 x 22.4 mm shell, and 2-position layout optimize space in crowded panels while maintaining accessibility for maintenance. Application: compact control boxes and distributed sensor networks.
Get a Quick Quote for a Eaton UTS6JC8E2S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E2S?
Enquire Now
FAQs
Install by selecting a cable within 1.5 to 6.5 mm diameter and using the Sealing Gland backshell to maintain IP68 sealing. Mate the straight plug with the corresponding receptacle using the 1/3 bayonet coupling until it locks securely. Ensure the contact ends are properly soldered (female solder cups) and that the assembly remains within the -40 to 105 C operating range for reliable performance.
The connector supports 7 A current (IEC and UL), with test voltage up to 250 V (CSA/UL) and 32 V (IEC). It operates from -40 °C to 105 °C and is rated IP68, offering UV resistance and resistance to solvents. Compliance includes IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemption 6.c, suitable for safety-critical industrial installations.
Yes. It is part of the UTS series and uses the 1/3 bayonet coupling with a sealing gland backshell, designed for two-position (2-contact) configurations. It supports standard Souriau UTS mating interfaces and backplane alignment, ensuring reliable field wiring in control cabinets and outdoor equipment when paired with corresponding Souriau UTS plugs or sockets.
Ideal for outdoor automation, industrial controls, sensors, and field wiring in harsh environments such as mining, agriculture, and outdoor machinery. The IP68/69K sealing, 7 A rating, and compact 54 mm length make it well-suited for crowded panels, robust sensor connections, and quick field maintenance without sacrificing reliability or regulatory compliance.
Expect reduced maintenance due to superior sealing and corrosion resistance from gold-plated contacts, with up to 250 mating cycles reducing replacement frequency. The RoHS-compliant design minimizes regulatory risk and inventory costs. Its quick-mating 1/3 bayonet design reduces field downtime, improving uptime and overall return on investment in automation projects.
