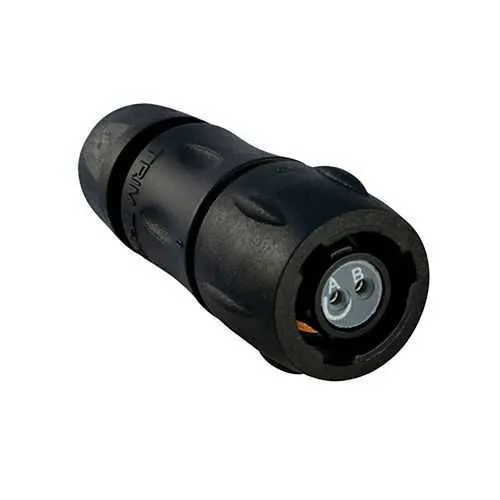

Eaton UTS6JC8E2SW IP68/69K Connector - Waterproof
Part Number: UTS6JC8E2SW
Quick Summary
Eaton UTS6JC8E2SW is a plastic waterproof IP68/69K connector plug designed for rugged industrial installations. Engineers often struggle with moisture ingress, corrosion, and downtime when wiring equipment in harsh environments. This model delivers robust sealing and dependable performance, backed by standards including IEC 61984, UL 1977, and CSA-C22.2 No.182.3 to help you stay compliant. With a compact 54 mm length and 2 contacts, it enables space-efficient, reliable wiring within Souriau UTS systems. The combination of a sealed backshell, 1/3 bayonet coupling, and gold-plated contacts translates to durable field connections and lower maintenance costs for production lines and outdoor machinery.
Product Information
Extended Description
UTS6JC8E2SW Eaton: Plastic plug, with cable gland backshell, with 2 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E2SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E2SW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
Feature: IP68/IP69K sealing with two gold-plated solder cup contacts → Business Impact: Protects against water and contaminants, extending component life in washdown and dusty environments → Application: Suitable for packaging lines, outdoor equipment, and wet-processing systems. Feature: 7 A current rating and 250 mating cycles → Business Impact: Ensures reliable power transmission with long service life, reducing replacement and downtime → Application: Conveyor drives, pumps, and actuators in demanding environments. Feature: Compact 54 mm length, 22.4 mm width, 22.4 mm height, and 13.6 g weight → Business Impact: Easier integration into tight control panels and space-constrained machinery → Application: Small-control enclosures and compact automation panels. Feature: Backshell with Sealing Gland and straight plug, 1/3 Bayonet coupling → Business Impact: Fast, secure mating even when debris is present, lowering installation time → Application: Field upgrades on existing Souriau UTS series harnesses. Feature: Operating temp range -40 °C to 105 °C and rugged material (neoprene insert, plastic shell) → Business Impact: Wide temperature tolerance and chemical resistance improve uptime in extreme conditions → Application: Outdoor equipment, food and beverage lines, and heavy industrial automation. Feature: 2 contacts, gold-plated solder cups, and 2 cavities with reliable mating cycles → Business Impact: Consistent electrical performance with low contact resistance and long-term stability → Application: Two-wire sensors, actuators, and control wiring in harsh environments.
Get a Quick Quote for a Eaton UTS6JC8E2SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E2SW?
Enquire Now
FAQs
The UTS6JC8E2SW is designed to mate with Souriau UTS series plugs and backshells. For installation, verify cable diameter falls within 1.5 to 6.5 mm, attach the backshell sealing gland, and align the W orientation for the 1/3 bayonet coupling. With two gold-plated solder cups loaded into two cavities, solder the conductors and securely mate the plug to the corresponding receptacle. The result is a watertight, vibration-resistant connection suitable for rugged environments.
This connector provides a 7 A current rating (UL and IEC) and supports up to 250 V (UL/CSA) or 32 V (IEC) depending on standard. It operates from -40 °C to 105 °C and has IP68 sealing. The assembly uses gold-plated solder cups for low contact resistance, and the unit is rated for up to 250 mating cycles, making it reliable for repetitive connections in industrial settings.
Yes. The IP68/69K rating, UV resistance, and neoprene insert provide robust performance in washdown and outdoor environments. Its sealing gland backshell and straight plug design help prevent ingress from dust, water, and solvents. This makes it well-suited for conveyors, outdoor equipment, packaging lines, and other equipment exposed to moisture or cleaning chemicals.
The UTS6JC8E2SW complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with an additional RoHS exemption 6.c. These certifications confirm electrical safety, environmental compliance, and suitability for industrial automation applications, helping ensure regulatory alignment in global deployments.
With 250 mating cycles and gold-plated contacts, the connector provides durable performance and stable conductivity over time, reducing contact resistance and startup delays. The IP68/69K sealing minimizes ingress during washdowns, lowering maintenance costs and downtime. Its compact size and Souriau UTS compatibility simplify spare parts management and long-term total cost of ownership.
