Eaton UTS6JC8E2SX Plastic Connector IP68/69K
Part Number: UTS6JC8E2SX
Quick Summary
Eaton UTS6JC8E2SX is a plastic waterproof IP68/69K connector designed for rugged outdoor and hazardous-area wiring. End users in harsh environments struggle with moisture ingress, corrosion, and costly downtime when connectors fail. The UTS series meets RoHS exemption 6.c, IEC 61984, CSA-C22.2 No.182.3, and UL 1977, delivering certified reliability. With a 7 A rating, 2 contacts and a sealing gland backshell, it aligns with automation panels, outdoor equipment, and industrial machinery. This solution reduces maintenance costs, improves field serviceability, and supports scalable connectivity through Souriau's UTS family for robust energy and data transmission.
Product Information
Extended Description

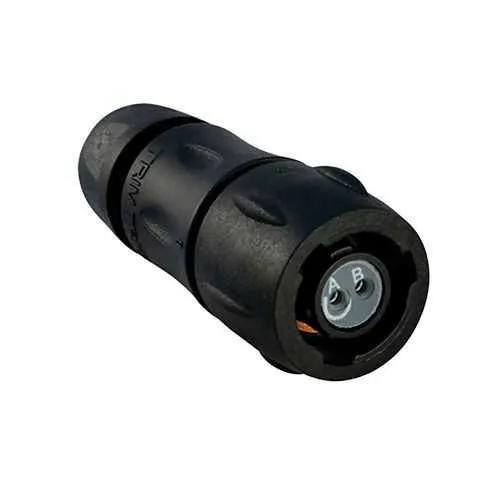

UTS6JC8E2SX Eaton: Plastic plug, with cable gland backshell, with 2 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC8E2SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E2SX
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.6 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against acid bath Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against oil
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
Feature IP68/69K sealing with a sealing gland backshell provides superior ingress protection in unmated conditions. Business Impact This minimizes moisture ingress and corrosion, extending service life in dirty or wet environments. Application Ideal for outdoor machines, mining equipment, and food-processing lines where environmental sealing is critical. Feature Gold-plated solder cup contacts with 2 positions deliver low contact resistance and corrosion resistance. Business Impact Ensures reliable signal transfer and longer intervals between maintenance. Application Sensor inputs and control circuits in automation panels benefit from consistent performance. Feature 1/3 Bayonet coupling with straight plug allows fast, secure mating. Business Impact Reduces installation time and improves vibration resistance in dynamic settings. Application Field wiring on conveyors and assembly lines. Feature Operating temperature range -40 °C to 105 °C enables operation across extreme climates. Business Impact Maintains performance in outdoor weather swings, lowering downtime and replacement costs. Application Outdoor equipment and mining machinery. Feature 7 A current rating and 250 mating cycles demonstrate durability. Business Impact Predictable lifecycle costs and reduced replacement frequency. Application Automation cabinets and industrial machinery with repeated plug/unplug cycles. Feature Cable diameter range of 1.5–6.5 mm and shell size 8 support flexible installation. Business Impact Simplifies inventory and enables broader cable compatibility. Application Retrofit projects and multi-cable configurations in control panels.
Get a Quick Quote for a Eaton UTS6JC8E2SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E2SX?
Enquire Now
FAQs
Plan for a 54 mm length, 22.4 mm width, and 22.4 mm height housing to fit standard panels. Use the Sealing Gland backshell to ensure IP68 sealing, and verify cable diameter is between 1.5 and 6.5 mm. Ensure proper mating with the straight plug and 1/3 Bayonet coupling for quick, secure field installation and vibration resistance.
The UTS6JC8E2SX supports a 7 A current rating with a test current of 7 A and a test voltage of up to 250 V (CSA/UL) and 32 V (IEC). It operates over a temperature range of -40 °C to 105 °C and offers 250 mating cycles, making it suitable for repeated connect/disconnect in demanding environments.
Compliances include RoHS exemption 6.c, IEC 61984, CSA-C22.2 No.182.3, and UL 1977. These certifications support regulatory acceptance in industrial automation projects and help meet supplier qualification requirements for machinery and panels.
Ideal for automation panels, outdoor machinery, conveyors, mining equipment, and food-processing lines that require reliable waterproof connectivity. The 2-contact, gold-plated solder cup design ensures stable sensor and control wiring even in harsh environments, while the IP68 rating protects against water and dust ingress.
With 250 mating cycles and a robust IP69K-sealed backshell, maintenance intervals are extended and downtime is reduced. The compact shell and 1.5–6.5 mm cable range simplify inventory and installation, lowering both initial and ongoing costs while providing modularity through the Souriau UTS family.
