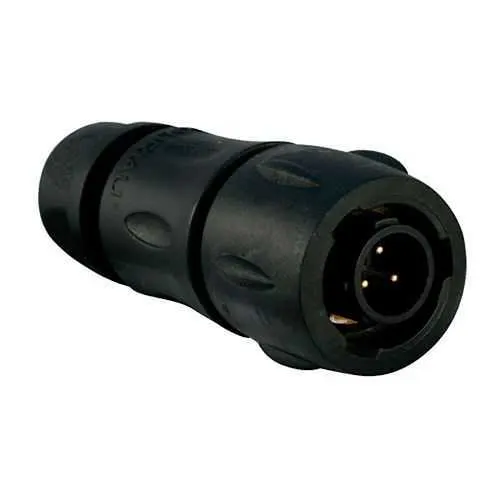

Eaton UTS6JC8E33P Connector - IP68/69K
Part Number: UTS6JC8E33P
Quick Summary
Eaton Souriau UTS6JC8E33P connector provides a plastic waterproof plug solution for harsh industrial environments. Engineers often contend with water ingress, loose contacts, and time-consuming maintenance in outdoor or washdown setups. UL 1977 and IEC 61984 certifications, along with IP68 protection and ROHS compliance, help assure rugged electrical performance and regulatory alignment for critical equipment. This connector also supports compact automation panels, sensors, and mobile machinery, delivering reliable connectivity, simplified installation, and lower total cost of ownership through durable materials and standardized compatibility.
Product Information
Extended Description
UTS6JC8E33P Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions; UTS6JC8E33P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E33P
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.5 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A UL 7 A IEC
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against basic bath
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
250 V CSA 250 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
33
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/69K sealed plastic shell protects against immersion and washdown, reducing downtime and replacement costs in harsh environments, making it ideal for outdoor automation and agricultural equipment. This translates to fewer field faults and lower maintenance overhead while enabling reliable signal transmission for sensors and actuators. The 3 gold-plated solder cup contacts provide robust electrical performance with corrosion resistance, supporting compact control circuits and ensuring stable operation over the product life. The straight plug with 1/3 Bayonet coupling offers quick, secure mating, speeding assembly and service in tight spaces and on mobile equipment. A sealing gland backshell simplifies installation and delivers dependable ingress protection without extra components, improving on-site efficiency. With a 7 A current rating and a voltage tolerance up to 250 V, it meets common industrial needs while remaining cost-effective for small-power devices. The connector supports up to 250 mating cycles, delivering long service life in frequent connect/disconnect applications, which lowers replacement and downtime costs. Operating from -40 °C to 105 °C, it remains reliable across extreme environments such as cold starts or hot workshop floors. Designed with Neoprene insert and a Plastic shell, it combines toughness with lightweight handling, benefiting labor and field technicians during installation and maintenance. Compatibility with existing Eaton Souriau assemblies ensures easier system integration and standardized spare parts for procurement teams.
Get a Quick Quote for a Eaton UTS6JC8E33P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E33P?
Enquire Now
FAQs
Yes. The UTS6JC8E33P is a straight plug in the UTS family with a Sealing Gland backshell and 1/3 Bayonet coupling. It is designed to mate with other UTS components and Souriau accessories, simplifying field upgrades and replacements. When integrating with existing systems, confirm the backshell type and orientation to ensure a proper seal and mating alignment.
This connector uses 3 gold-plated solder cup contacts (male), delivering a current rating of 7 A and voltage ratings of up to 250 V (CSA/UL). The solder cup contacts provide reliable, low-impedance connections suitable for sensors and actuators in compact control circuits, with robust resistance to corrosion and wear.
Yes. The UTS6JC8E33P achieves IP68 protection and is rated for unmated exposure, making it suitable for outdoor, industrial washdown, and harsh environments. Its UV resistance, mineral oil resistance, and gasketed backshell support reliable operation under exposure to oils, moisture, and varying temperatures typical in field installations.
The connector complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications provide confidence in electrical safety, environmental compliance, and suitability for industrial automation applications, while ensuring compatibility with standard electrical and control equipment in North American and international markets.
With 250 mating cycles, gold-plated contacts, and a durable IP68/69K seal, the UTS6JC8E33P reduces maintenance frequency and improves reliability in frequent plug/unplug scenarios. The 54 mm length and compact 22.4 x 22.4 mm footprint simplify panel mounting, while compatibility with existing Souriau accessories lowers spare parts inventory and procurement complexity, delivering measurable total-cost-of-ownership benefits.
