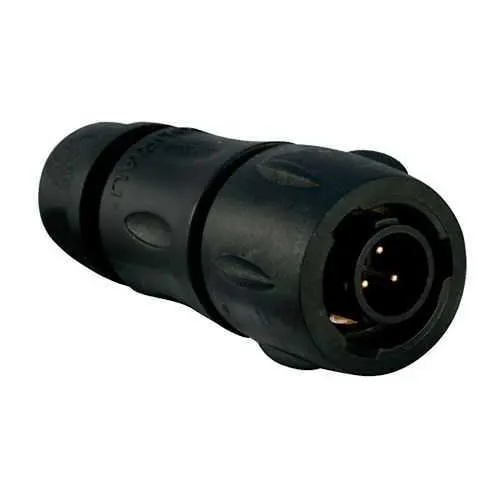

Eaton UTS6JC8E33PW Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC8E33PW
Quick Summary
Eaton UTS6JC8E33PW plastic waterproof IP68/69K connector enables rugged field connectivity. Operators often struggle with moisture intrusion, corrosion, and unreliable connections in outdoor or wet plant zones, leading to frequent maintenance. This UTS plug addresses those challenges with a sealing gland backshell, neoprene insert, and a robust plastic shell rated IP68/69K in unmated conditions. It carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, helping you meet global safety and compliance requirements. With three male solder contacts, gold plating, and a 1/3 Bayonet coupling, installation is quick and vibration-resistant. The 54 mm length and compact 22.4 mm footprint support tight panel layouts, while 7 A/50–250 V ratings deliver reliable performance in control and sensing circuits.
Product Information
Extended Description
UTS6JC8E33PW Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E33PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E33PW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.5 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against oil Resistant against gasoline Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
33
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature IP68/69K sealing and backshell with sealing gland → Business Impact Ensures long-term reliability in washdown and oil-damp environments, reducing field maintenance and downtime → Application Robotic cells, outdoor conveying, and packaging lines where moisture, dust, or oils are present. Feature 3 gold-plated solder cup contacts → Business Impact Improves conductivity and corrosion resistance, extending connector life and signal integrity → Application 3-sensor or actuator wiring in harsh plants. Feature 1/3 Bayonet coupling with straight plug → Business Impact Quick, secure mating in tight spaces, minimizing installation time and misalignment → Application Machine tool enclosures and compact control panels. Feature Neoprene insert and UV/oil resistance → Business Impact Sustains seal integrity under UV exposure and mineral oil, reducing ingress over service life → Application Outdoor equipment and off-road machinery. Feature Cable diameter range 1.5–6.5 mm and mating cycles 250 → Business Impact Allows flexible wiring and durable use across multiple deployments, lowering replacement costs → Application Field wiring in automotive test rigs and industrial automation. Feature Operating temperature -40 to 105 C and 7 A current rating → Business Impact Maintains performance across extreme climates and workload, reducing circuit protection needs → Application Extreme environment machinery and sensors. Feature RoHS-compliant with multiple safety certifications → Business Impact Simplifies procurement and regulatory compliance, speeding project timelines → Application Global manufacturing and multi-site installations.
Get a Quick Quote for a Eaton UTS6JC8E33PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E33PW?
Enquire Now
FAQs
Ensure the backshell is a Sealing Gland type and the mating orientation is set to W. The plug is a straight 3-contact solder cup design with a 1/3 Bayonet coupling. Use the supplied connector to engage the mating halves, align the keying, and tighten the backshell gland to seal against moisture and dust. The 54 mm depth fits common panel cutouts, and the 22.4 mm width/height supports compact layouts.
The connector provides a 7 A current rating with 50 V IEC and 250 V CSA/UL ratings. It uses 3 gold-plated solder cup contacts for reliable low-resistance connections. This combination supports control circuits and sensor wiring in environments where signal integrity and durability are critical.
Yes. It is IP68 rated (and IP68/69K in unmated conditions) with UV resistance and oil/gasoline compatibility. The neoprene insert and sealing gland backshell enhance ingress protection, while the operating temperature range of -40 °C to 105 °C supports extreme outdoor or industrial conditions.
It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c noted. These certifications support safety, compatibility with equipment in North America and Europe, and compliance for regulated assemblies in automation and control panels.
With up to 250 mating cycles, gold-plated contacts, and a robust IP68/69K seal, field maintenance is reduced and reliability is improved. Quick bayonet mating speeds assembly, lowers downtime, and reduces total cost of ownership in high-shock, high-dust environments common to packaging, material handling, and outdoor machinery.
