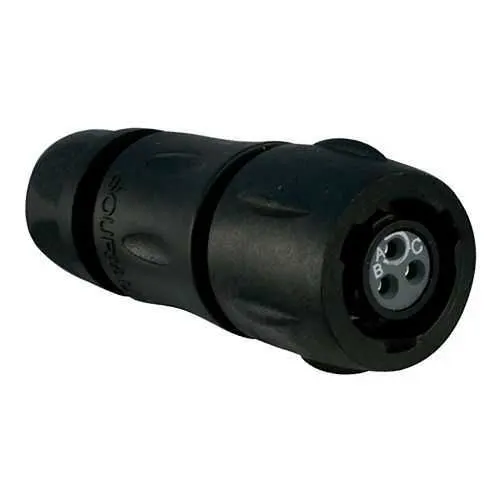

Eaton UTS6JC8E33SW Plug Connector - IP68/69K Waterproof
Part Number: UTS6JC8E33SW
Quick Summary
Eaton UTS6JC8E33SW is a plastic waterproof IP68/69K plug connector designed for rugged industrial wiring in harsh environments. Engineers often struggle with cable ingress and frequent maintenance in wet, dusty facilities. The design carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications with IP68 protection, providing reliability where exposure to water, dust, and vibration is routine. Its sealed backshell, Neoprene insert, and 3 female solder contacts deliver robust performance while remaining compact and easy to install. This combination supports automation panels and field devices, delivering improved uptime, simplified supplier management, and safer, compliant installations across industrial applications.
Product Information
Extended Description
UTS6JC8E33SW Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E33SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E33SW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
14 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against oil Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
33
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature IP68/69K protection and unmated sealing backshell → Business Impact This protects against water, dust, and contaminants, reducing ingress-related failures and maintenance costs in outdoor or wash-down environments. Application Outdoor machinery, conveyors, and control panels benefit from long-term reliability. Feature 3 female solder contacts with gold plating → Business Impact Low contact resistance and high durability improve signal integrity and lifecycle reliability, lowering repair frequency in harsh conditions. Application Sensor networks, motor feedback, and field wiring in demanding environments. Feature 1/3 bayonet coupling → Business Impact Fast, tool-free mating accelerates installations and service, decreasing downtime and labor costs. Application Panel assemblies and field replacements where quick access is essential. Feature Backshell sealing gland and cable diameter range 1.5–6.5 mm → Business Impact Flexible cable fits a variety of applications, reducing the need for adapters and splices. Application Robotic arms, PLC field connectors, and pump installations. Feature Neoprene insert and IP68 protection → Business Impact Superior environmental resistance translates to extended service intervals and lower replacement costs. Application Food processing, water treatment, and outdoor equipment. Feature Operating temperature -40 °C to 105 °C → Business Impact Wide thermal tolerance supports operation in extreme climates and machine cycles, minimizing failures due to temperature swings. Application Cold rooms, ovens, and outdoor enclosures. Feature 250 mating cycles → Business Impact Durable connection lifecycle supports maintenance routines without premature wear. Application Frequent assembly/disassembly in modular systems.
Get a Quick Quote for a Eaton UTS6JC8E33SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E33SW?
Enquire Now
FAQs
The UTS6JC8E33SW uses a sealing gland backshell and accepts cable diameters from 1.5 to 6.5 mm. Mating is via a straight plug with a 1/3 bayonet coupling, and the contact arrangement is three female solder cups with gold plating. This design allows direct field installation on Souriau UTS series components while maintaining IP68 protection and a secure seal.
This plug delivers a 7 A current rating across IEC, UL, and CSA standards, with test voltages of 50 V (IEC) and 250 V (UL/CSA). The three contacts are gold-plated Solder Cup type, ensuring reliable performance in demanding environments while meeting regulatory expectations for industrial control wiring.
Yes. It is rated IP68 and IP69K unmated, with UV resistance and a robust Neoprene insert. Its chemical and oil resistance, together with a sealing gland backshell, makes it well-suited for outdoor machinery, conveyors, and wash-down environments commonly found in manufacturing and processing plants.
Compliance includes UL 1977, CSA-C22.2 No.182.3, and IEC 61984, along with RoHS exemption 6.c. The IP68 / IP69K rating provides environmental protection, while the gold-plated contacts promote durability and corrosion resistance in continuous operation.
The UTS6JC8E33SW combines sealed sealing gland backshells, IP68/69K protection, and a rugged 3-contact configuration with 250 mating cycles. This reduces ingress-related failures, simplifies field servicing, and extends service intervals, delivering lower maintenance costs and higher system uptime in automation and process applications.
