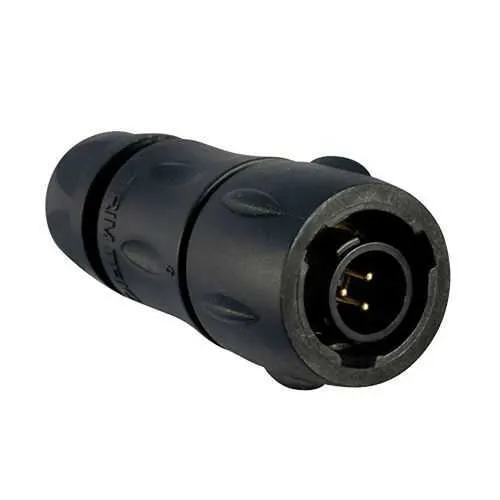

Eaton UTS6JC8E3APW Plug - IP68/69K Waterproof Connector
Part Number: UTS6JC8E3APW
Quick Summary
The Eaton UTS6JC8E3APW is a plastic waterproof IP68/69K connector for rugged industrial wiring. In harsh environments, moisture ingress and frequent mating cycles drive maintenance costs and downtime. UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications underpin safety and regulatory compliance in machinery and automation panels. Designed for easy field installation and long service life, this plug delivers reliable sealing, gold-plated contacts, and a compact 54 mm footprint while supporting flexible cable diameters. Together with RoHS exemption 6.c, it helps you meet sustainability targets without sacrificing performance.
Product Information
Extended Description
UTS6JC8E3APW Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E3APW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E3APW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.5 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 7 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against basic bath Resistant against gasoline Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A UL 7 A IEC 7 A CSA
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
E3A
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/69K sealing and sealing gland backshell design provide robust ingress protection, reducing washdown-related failures and extending equipment uptime. The business impact is lower maintenance costs and fewer unplanned downtime events in outdoor, wet, or chemical environments. Application-wise, it suits conveyor systems, outdoor sensors, and process machinery that require reliable sealing and easy integration. The 3-pin solder cup contacts with gold plating deliver superior conductivity and corrosion resistance, translating to stable signal integrity and longer service life in demanding applications. This connector uses a straight plug with a 1/3 Bayonet coupling, enabling quick, secure mating and vibration resistance in high-impact environments. The 54 mm length and Neoprene insert support flexible cable diameters from 1.5 to 6.5 mm, simplifying field assembly and stocking.Engineering-grade compatibility is reinforced by a maximum current rating of 7 A and test voltage up to 250 V, ensuring safe operation in automation panels and control cabinets. Mating cycles reach 250, supporting routine maintenance without premature wear. The combination of UL 1977, CSA-C22.2 No.182.3, and IEC 61984 compliance with RoHS exemption 6.c helps meet industry standards and corporate sustainability goals while streamlining supplier qualification. This is especially valuable for OEMs and integrators seeking a reliable, standards-aligned I/O connector across machines and system architectures.
Get a Quick Quote for a Eaton UTS6JC8E3APW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E3APW?
Enquire Now
FAQs
Installers should align the 3-pin male contacts to the mating counterpart, ensure the Backshell is a Sealing Gland type, and tighten mating components to spec. The 1/3 Bayonet coupling provides quick, secure engagement while maintaining IP68 protection in unmated conditions. Use compatible cable diameters between 1.5 and 6.5 mm and verify the seal integrity after installation to maintain long-term ingress protection.
Check current rating of 7 A (IEC/UL) and test voltage up to 250 V (IEC/UL/CSA). The 3 contact configuration uses gold-plated solder cups, which deliver low contact resistance and corrosion resistance. Ensure operating temperature range from -40 °C to 105 °C, and confirm mating cycles of 250 for lifecycle planning in automation panels.
Yes. With IP68 protection, UV resistance, and oil/chemical resistance in its environmental spec, the connector supports outdoor and harsh indoor environments. The Neoprene insert and Sealing Gland backshell provide durable sealing, while the 3-pin configuration supports robust sensor and actuator signaling in rugged machinery applications.
This connector complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption 6.c. These certifications influence safety, electrical performance, and environmental compliance in industrial automation, enabling easier supplier qualification and panel integration for regulated machinery and control systems.
The 250 mating cycles and gold-plated contacts deliver long-term reliability with reduced contact resistance and corrosion, lowering maintenance frequency. IP68 sealing minimizes ingress-related failures, reducing downtime in washdown environments. Overall TCO is improved through fewer replacements, faster field servicing, and compliance alignment with UL/IEC standards.
