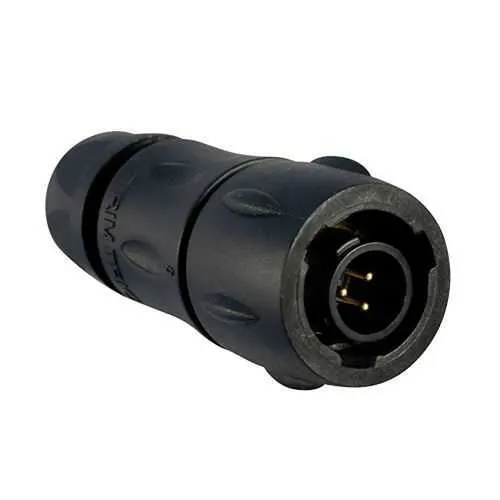

Eaton UTS6JC8E3APX UTS Series Plastic Connector - IP68/69K
Part Number: UTS6JC8E3APX
Quick Summary
Eaton UTS6JC8E3APX is a plastic waterproof connector designed for rugged industrial environments. Engineers face ongoing challenges with water ingress and seal failures in wet, outdoor, or washdown settings, impacting downtime and maintenance costs. This UTS series connector delivers robust protection, meeting IP68 requirements with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications to back reliability in harsh conditions. The compact 3-pin solder contact design paired with a straightforward 1/3 bayonet coupling simplifies installation and reduces commissioning time. By aligning with Souriau UTS compatibility, it enables scalable wiring and cost-efficient replacements while protecting critical assets and uptime.
Product Information
Extended Description
UTS6JC8E3APX Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC8E3APX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E3APX
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.5 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against acid bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against oil Resistant against basic bath
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
E3A
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature IP68/IP69K waterproof performance with straight plug and 3 solder contacts provides superior ingress protection, reducing the risk of equipment failure and enabling longer uptime in harsh environments. Business Impact This translates to fewer field repairs, lower maintenance costs, and improved overall equipment effectiveness in outdoor or washdown applications. Application Suitable for industrial machinery, outdoor electrical panels, and sensor/actuator assemblies where reliable seals are essential. Feature 1/3 bayonet coupling enables quick mate/unmate cycles, cutting installation time and technician labor. Business Impact Faster assembly, lower labor costs, and reduced downtime during routine maintenance or conduit changes. Application Field service and modular systems where speed matters. Feature Cable diameter range 1.5 to 6.5 mm supports a wide variety of sensor and control cables. Business Impact Greater wiring flexibility and fewer adapter parts, reducing inventory and crane/field installation complexity. Application Versatile installations across machinery and process lines. Feature Operating temperature from -40 °C to 105 °C accommodates extreme environments, including refrigerated spaces and heated industrial floors. Business Impact Extends usable life in temperature extremes, lowering replacement cycles and ensuring signal integrity. Application Automotive, mining, and heavy equipment where temperature variance is common. Feature Gold-plated solder cup contacts resist corrosion and maintain reliable conductivity over time. Business Impact Improves long-term electrical performance and reduces contact resistance under vibration. Application Control wiring and signal loops in harsh settings. Feature 250 mating cycles indicate durable, repeatable connections for routine maintenance and reconfigurations. Business Impact Lowers lifecycle replacement costs and downtime in asset-heavy facilities. Application Industrial automation panels and machine retrofits.
