Eaton UTS6JC8E3PW Plug - IP68/69K Waterproof Connector
Part Number: UTS6JC8E3PW
Quick Summary
The Eaton UTS6JC8E3PW is a plastic waterproof IP68/69K plug designed for rugged sensor and actuator installations in harsh industrial environments. Engineers often contend with moisture ingress, vibration, and challenging maintenance in the field, which can drive downtime and repair costs. This connector aligns with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, along with ROHS exemption 6.c, to support safety, compliance, and sustainability. With a compact 3‑cavity layout and a sealing gland backshell, it simplifies installation and reduces harness complexity. The design also supports reliable gold-plated solder cup contacts and a robust 1/3 bayonet coupling for quick, secure mating in demanding settings.
Product Information
Extended Description

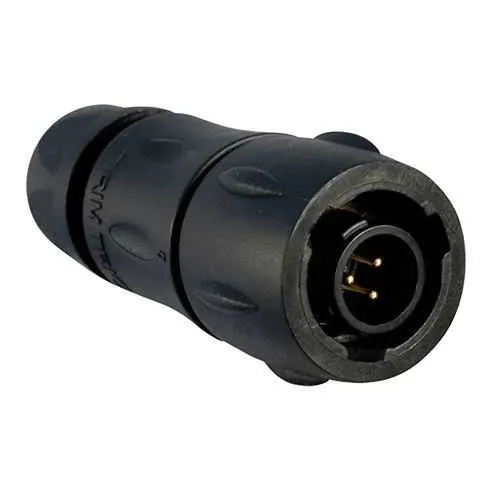

UTS6JC8E3PW Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E3PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E3PW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.4 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/69K sealing with a sealing gland backshell creates a proven barrier against water, dust and chemical exposure. Business Impact: Extends uptime in outdoor or washdown environments, reduces field service time, and lowers maintenance costs. Application: Outdoor machinery, conveyors, and process lines where robustness and longevity are critical. Feature: 3 gold-plated solder cup contacts deliver low contact resistance and corrosion resistance. Business Impact: Ensures stable signal and power transmission in humid, harsh environments, improving reliability of control circuits. Application: Sensor power, signal lines, and small actuators in automation panels. Feature: 7 A current rating and 250 V test voltage enable field connections without oversizing harnesses. Business Impact: Simplifies wiring design, lowers part count, and reduces total cost of ownership. Application: PLC I/O, general automation devices, and field-mounted controls. Feature: 250 mating cycles and durable plastic shell support frequent connect/disconnect cycles without performance loss. Business Impact: Improves maintenance scheduling and reduces replacement costs in high-change environments. Application: Robotic platforms and serviceable equipment. Feature: Operating range -40 to 105 °C and flexible cable diameter compatibility (1.5–6.5 mm). Business Impact: Broadens suitability across temperature swings and varied harnesses, saving redesigns and inventory. Application: Heavy-duty machinery, outdoor installations, and marine/industrial environments. Feature: 1/3 bayonet coupling with straight plug orientation and backshell sealing gland. Business Impact: Quick, secure mating with reliable sealing, enabling faster assembly in tight spaces. Application: Panels, junction boxes, and compact control enclosures.
