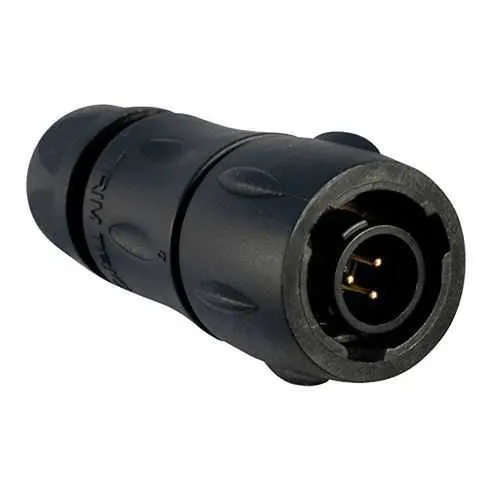

Eaton UTS6JC8E3PX Plastic Waterproof IP68/69K Connector - IP68/69K
Part Number: UTS6JC8E3PX
Quick Summary
Eaton Souriau UTS6JC8E3PX plastic waterproof IP68/69K connector provides reliable sealing for rugged automation environments. In wash-down or outdoor installations, ingress protection can delay uptime and drive maintenance costs. Key certifications include UL 1977, CSA-C22.2 No.182.3, IEC 61984, and RoHS exemption 6.c, underscoring safety and regulatory compliance. This 3-position plug in a compact form factor offers corrosion resistance with gold-plated contacts, a sealing gland backshell, and a X-keying for robust field installation. For engineers, the product combines reliable performance with installation efficiency, reducing downtime and ensuring compliant connectivity in industrial automation and electrical applications.
Product Information
Extended Description
UTS6JC8E3PX Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC8E3PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E3PX
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil Resistant against mineral oil Resistant against acid bath
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/69K sealing provides dust-tight and water-tight protection for unmated connectors, reducing failure modes in washdown and outdoor environments and increasing mean time between failures in harsh facilities. This directly improves system uptime and lowers maintenance intervals in process lines and packaging plants. The 7 A current rating at up to 250 V, combined with gold-plated solder cups, delivers reliable electrical performance and long-term corrosion resistance in aggressive environments, translating to lower replacement costs and safer electrical integrity. The 3-contact, 3-cavity layout with Neoprene insert offers compact yet flexible wiring for multi-sensor or actuator bundles, enabling streamlined harness design and faster installation. A straight plug with 1/3 Bayonet coupling simplifies mating and reduces risk of misalignment during field connections, while mating cycles of 250 support durable lifecycle in high-use automation lines.
Get a Quick Quote for a Eaton UTS6JC8E3PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E3PX?
Enquire Now
FAQs
Use the provided sealing gland backshell and ensure the cable diameter falls within 1.5 to 6.5 mm. The connector features a straight plug with 3 cavities and a 1/3 bayonet coupling for fast, reliable mating. Confirm alignment using the X-keying and verify gold-plated solder cups for secure terminations. This setup supports easy field replacement without compromising IP68/69K protection.
The UTS6JC8E3PX is rated for 7 A at up to 250 V across its 3-channel layout. Contacts are gold-plated solder cups, designed for reliable conductivity and corrosion resistance in challenging environments. The mating cycles are specified at 250, supporting repeated connect/disconnect in factory floor or outdoor installations.
Yes. The UTS6JC8E3PX provides IP68 protection (unmated) and IEC-rated performance with a sealing gland backshell. It also withstands vibrations (10–2000 Hz) and various chemical exposures, making it well-suited for washdown areas, outdoor machinery, and chemical processing lines.
The product references UL 1977, CSA-C22.2 No.182.3, and IEC 61984, along with RoHS exemption 6.c. These certifications support compliance in industrial automation projects, ensuring safety, interoperability, and reduced regulatory risk for global deployments.
With IP68/69K protection, gold-plated contacts, and a robust 250 mating-cycle life, this connector minimizes downtime from water/dust ingress and reduces replacement costs. Its compact 3-pin design and sealing gland backshell simplify harnessing and installation, delivering faster service, improved throughput, and a favorable return on investment in demanding automation environments.
