Eaton UTS6JC8E3SW Plastic Waterproof IP68/69k Connector - IP68/69k Rating
Part Number: UTS6JC8E3SW
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector enables rugged, reliable 3-cavity connections for harsh industrial environments. Engineers face water ingress, vibration, and downtime when equipment is exposed to splashes and outdoor conditions. This connector family delivers IP68 protection, UL 1977 and IEC 61984 approvals, and ROHS exemption 6.c for regulated environments. With a compact 54 mm body, 3 gold-plated solder contacts, and sealing gland backshell, it reduces maintenance time and system complexity, while supporting outdoor automation and mobile equipment. Its broad operating range from -40°C to 105°C and 7 A current rating makes it suitable for controls, sensors, and actuators in demanding environments.
Product Information
Extended Description

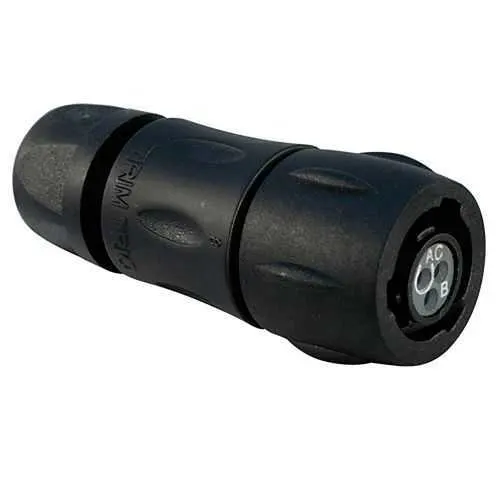

UTS6JC8E3SW Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E3SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E3SW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.8 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/69k waterproof rating with a sealing gland backshell. Business Impact: Provides reliable ingress protection in wet or dusty environments, reducing fault rates and maintenance costs. Application: Outdoor automation panels and splash-prone machinery. Feature: 7 A current rating across IEC, UL, and CSA standards. Business Impact: Supports power and control circuits with a robust safety margin, lowering sizing constraints and wiring complexity. Application: Conveyor systems and mobile equipment in harsh facilities. Feature: 3 contacts with gold-plated solder cups. Business Impact: Ensures low contact resistance and durable solder connections for long-term reliability. Application: Sensor networks and actuator control in automation cells. Feature: 1/3 Bayonet coupling and straight plug. Business Impact: Quick, secure mating with minimal torque, enabling faster field service and reduced downtime. Application: On-site maintenance and modular automation assemblies. Feature: Neoprene insert and backshell with gland. Business Impact: Excellent environmental sealing and cable strain relief for varied cable diameters (1.5 to 6.5 mm). Application: Harsh chemical and outdoor installations. Feature: 54 mm length and compact 22.4 x 22.4 mm shell. Business Impact: Space-efficient footprint facilitates tight panel layouts and multi-connector harness designs. Application: Robotic arms and compact control enclosures. Feature: RoHS exemption 6.c, UL 1977, CSA C22.2 No. 182.3, and IEC 61984 compliance. Business Impact: Regulatory peace of mind and easier cross-border qualification for industrial equipment. Application: Global machine builders and certified electrical assemblies.
Get a Quick Quote for a Eaton UTS6JC8E3SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E3SW?
Enquire Now
FAQs
Installation begins with selecting cables that fit the 1.5 to 6.5 mm diameter range and preparing the leads for solder Cup contacts. The backshell with sealing gland is threaded onto the plug and the cable is routed through the gland to maintain IP68 integrity. Finally, mate with the corresponding counterpart using the 1/3 Bayonet coupling for secure, watertight connection.
Its IP68 protection rating ensures ingress resistance against water and dust, while the Neoprene insert and sealing gland backshell provide reliable cable sealing. The connector operates from -40 °C to 105 °C and withstands vibrations per IEC 60512-4. With 7 A current rating and 250 mating cycles, it supports demanding automation tasks with long service life.
Yes. The unit is certified for IEC 61984 and UL 1977, with CSA C22.2 No. 182.3 recognition. It carries a 7 A rating under IEC, UL, and CSA guidelines, and complies with RoHS exemption 6.c. This ensures regulatory compliance across global markets and simplifies integration into certified electrical systems.
Best suited for outdoor automation, control panels, and mobile equipment exposed to damp or dusty conditions. The 3‑cavity plug supports sensor and actuator networks with gold-plated solder cups for reliable signal integrity. The compact footprint and Bayonet coupling speed up field maintenance, making it ideal for conveyors, robotic systems, and rugged machinery.
The combination of IP68/69k sealing, high mating cycles, and robust materials reduces maintenance frequency and downtime. With 250 mating cycles and a durable, corrosion-resistant contact design, the total cost of ownership declines as fewer field repairs are needed, while regulatory compliance minimizes requalification costs for equipment deployed in harsh environments.
