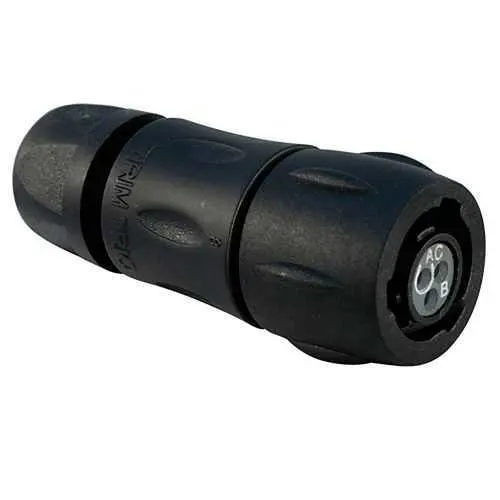

Eaton UTS6JC8E3SX UTS Series Connector - IP68/69K
Part Number: UTS6JC8E3SX
Quick Summary
The Eaton UTS6JC8E3SX is a plastic waterproof IP68/69K connector designed for rugged industrial wiring applications. Engineers often wrestle with sealing, vibration, and field-accessibility, especially in outdoor or washdown environments. Certified to IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemptions, it meets stringent industry standards. With 3 solder-contact sockets, 1/3 bayonet coupling, and a backshell sealing gland, it delivers quick, reliable field connections. The design supports up to 7 A and 250 V, with a -40 to 105 C operating range, ensuring performance across demanding cycles. This combination helps OEMs shorten assembly times, reduce maintenance downtime, and simplify inventory for service teams in harsh environments.
Product Information
Extended Description
UTS6JC8E3SX Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC8E3SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E3SX
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.8 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
250 V UL 32 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/69K sealing and rugged environmental resistance → Benefit: Maintains electrical integrity in dust, water, and washdown environments, reducing downtime and warranty costs; Application: Outdoor automation and harsh-shopfloor installations. Feature: 3 solder-contact sockets with gold plating → Benefit: Reliable, low-resistance connections with corrosion resistance; Application: Servo drives and sensor networks requiring robust signal fidelity. Feature: 1/3 bayonet coupling with straight plug → Benefit: Fast, tool-free mating/demating and straightforward maintenance; Application: OEM assemblies needing quick field servicing. Feature: Backshell sealing gland and neoprene insert → Benefit: Enhanced sealing accuracy and cable strain relief; Application: Industrial machinery subject to vibration and oil exposure. Feature: Cable diameter range 1.5–6.5 mm and shell size 8 → Benefit: Flexible cable options and compact footprint for tight enclosures; Application: Compact control panels and equipment mounted in confined spaces. Feature: Operating temperature -40 to 105 C and 250 V rating → Benefit: Wide-temperature performance and safe operation in extreme environments; Application: Food & beverage, automotive, and outdoor equipment. Feature: 7 A current rating and 250 V test voltage with 250 mating cycles → Benefit: Durable power interface with predictable lifecycle; Application: Electrical harnesses and actuation systems in industrial plants.
Get a Quick Quote for a Eaton UTS6JC8E3SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E3SX?
Enquire Now
FAQs
Install with the backshell sealing gland in place and ensure the orientation is X. Use a cable diameter between 1.5 and 6.5 mm, insert the cable through the gland, and connect the 3 solder cup contacts (gold-plated) to the mating component. Mate with the corresponding plug and twist to engage the 1/3 bayonet coupling for a tight seal and IP68/69K protection.
The connector provides a 7 A current rating and a 250 V voltage rating, tested to UL, IEC, and CSA standards. It features 3 contacts (solder cup) with gold plating for reliable, corrosion-resistant connections and can withstand up to 250 mating cycles under typical usage conditions.
Yes. Its IP68 rating, UV resistance, and robust sealing gland backshell make it ideal for outdoor and washdown environments. It also tolerates vibrations per IEC 60512-4 from 10 to 2000 Hz, ensuring stable connections in machinery undergoing frequent motion and jostling.
It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c. These certifications confirm compatibility with global electrical safety and performance standards, facilitating regulatory approval, quality assurance, and market access for equipment builders.
With 250 mating cycles, gold-plated contacts, and a sealing gland backshell, the UTS6JC8E3SX minimizes maintenance downtime and corrosion-related failures. Its compact shell size and 3-contact configuration simplify wiring, reduce inventory complexity, and improve serviceability in harsh industrial environments.
