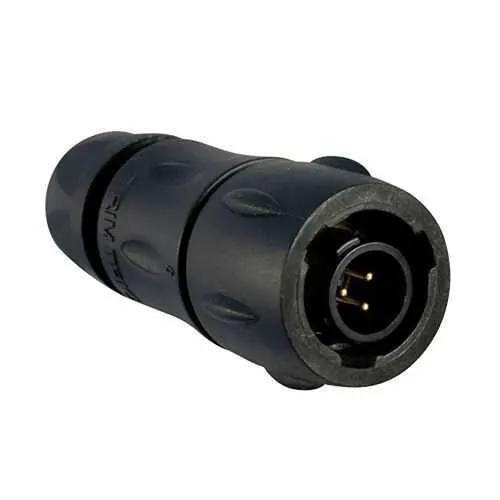

Eaton UTS6JC8E98P Souriau Connector Waterproof IP68/69K
Part Number: UTS6JC8E98P
Quick Summary
The Eaton Souriau UTS6JC8E98P connector delivers reliable waterproof connectivity for harsh automation environments. In real-world installations, moisture ingress, vibration and seal degradation threaten uptime and safety. This IP68/69K-rated plug, with UL 1977 and IEC 61984 compliance plus ROHS exemption 6.c, is designed to endure challenging conditions while meeting regulatory requirements. Its compact 54 mm length and 3-pin solder-contact design enable efficient panel and field wiring. By combining rugged sealing with straightforward installation, it helps reduce maintenance costs and unplanned downtime for industrial equipment, conveyors and sensing networks.
Product Information
Extended Description
UTS6JC8E98P Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions; UTS6JC8E98P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E98P
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.5 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against mineral oil Resistant against oil Resistant against acid bath Resistant against basic bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A IEC 7 A UL 7 A CSA
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature IP68/69K sealing provides superior protection against water and dust, reducing field failures. Business Impact fewer unplanned outages and longer service life in wet or oil-contaminated environments. Application suitable for automation panels, outdoor equipment and mobile machinery. Feature 7 A rating supports common control and sensing loads in compact connectors. Business Impact safer, more reliable electrical interfaces with higher current capability. Application ideal for 3-pin solder cup configurations in harsh environments. Feature 1/3 Bayonet coupling enables quick mating and secure connections in dirty or vibrating conditions. Business Impact faster maintenance and reduced assembly time. Application improves efficiency on production lines and field installations. Feature Gold-plated contacts ensure low contact resistance and corrosion resistance. Business Impact consistent signal integrity and longer contact life. Application especially beneficial for signal and power connectors in automation networks. Feature Neoprene insert and plastic shell offer chemical resistance and UV stability. Business Impact extended product life and stable performance in industrial environments. Application supports long-term field deployment in demanding settings.
Get a Quick Quote for a Eaton UTS6JC8E98P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E98P?
Enquire Now
FAQs
To maximize sealing integrity, use the backshell with the sealing gland, ensure the cable diameter sits within 1.5 to 6.5 mm, and mount the straight plug in the N orientation. Confirm 3 gold-plated solder cup contacts are properly seated and that the mating cycle target of up to 250 is respected through secure lever engagement. Proper assembly plus a clean, debris-free environment preserves IP68/69K protection in demanding settings.
Yes. The connector complies with IEC 61984 and UL 1977, and is listed under CSA-related standards with RoHS exemption 6.c. For complete certification details, please consult the datasheet and verify the exact regional compliance requirements for your project.
The unit provides a 7 A rating per IEC/UL/CSA and features three gold-plated solder cup contacts in a 3-cavity layout. It is designed for a maximum test voltage of 250 V (UL/CSA) and accommodates compact, high-reliability power and signal connections in automation hardware.
The 1/3 bayonet coupling delivers fast, tool-free mating with strong resistance to vibration and misalignment. This reduces installation time, improves reliability in dirty or dynamic environments, and simplifies field maintenance by enabling quick disconnection when cabling needs to be reworked.
With a mating cycle rating of 250, plan for periodic inspection or replacement after extended use in aggressive environments. The combination of IP68/69K sealing, UV resistance, and mineral oil resistance supports long service life, while RoHS compliance helps minimize material-related regulatory concerns in ongoing maintenance programs.
