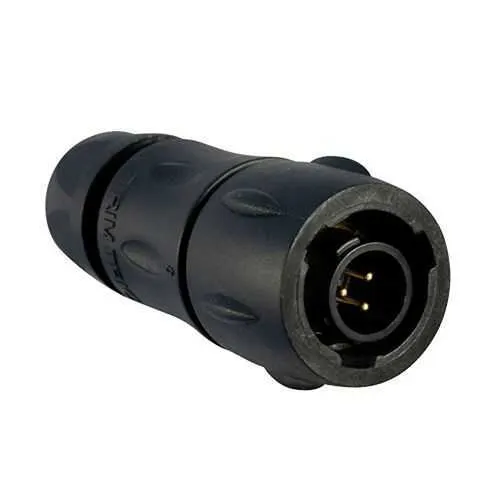

Eaton UTS6JC8E98PW Plug - Waterproof Connector IP68/69K
Part Number: UTS6JC8E98PW
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69K connector delivers sealed power and signal links for rugged industrial equipment. Users routinely face moisture ingress, unreliable contacts, and costly field maintenance in washdown environments. This plug meets IEC 61984, UL 1977, and CSA-C22.2 No. 182.3 certifications to support compliant, safe operation. With easy integration into Souriau UTS mating interfaces and a compact footprint, it accelerates installation and reduces lifecycle costs. Designed for IP68/69K rugged use, the connector supports reliable power and sensor signaling in demanding industrial settings. Its 3-pin solder contacts, gold plating, 54 mm length, and 7 A rating help engineers specify a single part for multiple applications.
Product Information
Extended Description
UTS6JC8E98PW Eaton: Plastic plug, with cable gland backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E98PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E98PW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
13.5 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against mineral oil Resistant against oil Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A IEC 7 A UL 7 A CSA
Test voltage
250 V CSA 50 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/69K sealing with a sealing gland backshell protects the 3 male solder contacts from moisture, dust, and washdown exposure, ensuring reliable operation in harsh environments. The straight plug with a 1/3 bayonet coupling remains secure under vibration while simplifying field mating and maintenance, and the neoprene insert provides dependable sealing across a 1.5 to 6.5 mm cable diameter range, reducing the need for additional adapters. This translates to faster, mistake-free installations and lower inventory costs for maintenance teams. The 7 A current rating at up to 250 V supports compact power and control wiring for sensors, actuators, and small devices, enabling leaner harnesses and improved energy efficiency. Gold-plated contacts offer superior corrosion resistance and consistent conductivity in oily or chemical environments, extending service life and reducing failure-related downtime. The connector’s 250 mating cycles enhance reliability in automation lines, minimizing replacement cycles and spare-part expenses. Compatibility with Souriau UTS interfaces ensures plug-and-play upgrades and consistent performance across existing systems, while the keying W orientation prevents incorrect mating in multi-connector assemblies. IP68/69K certification, UV resistance, and oil/chemical tolerance expand usable life in outdoor, warehouse, and offshore applications, delivering more uptime per dollar spent. The compact 54 mm depth, 22.4 mm width, and 22.4 mm height, along with shell size 8, keep panel space to a minimum without sacrificing ruggedness.
Get a Quick Quote for a Eaton UTS6JC8E98PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E98PW?
Enquire Now
FAQs
Yes. The UTS6JC8E98PW is a straight plug with a 1/3 bayonet coupling designed to mate with Souriau UTS receptacles. Install by selecting the W-keyed orientation, using the sealing gland backshell, and securing with the appropriate panel cutout and cable gland. The 54 mm depth keeps panel space compact, while the 1.5–6.5 mm cable diameter range supports a variety of common field cables. Delivered with the connector, no extra accessories are typically required for standard installations, speeding up commissioning and reducing parts count.
The UTS6JC8E98PW supports a test/current rating of 7 A and a volt rating up to 250 V, suitable for powering sensors and small actuators in automated lines. Contacts are gold-plated Solder Cup type, loaded and ready for delivery, with 3 contacts in a 3-position configuration. The combination of gold plating and solder cups provides reliable conductivity and corrosion resistance in challenging environments.
Yes. The connector is IP68 rated and designed for demanding environments, including washdowns and outdoor installations. Its UV resistance, mineral oil and chemical tolerance, and broad operating temperature range (-40 °C to 105 °C) make it suitable for marine, industrial, and outdoor automation equipment, reducing replacement cycles and maintenance costs.
The UTS6JC8E98PW complies with IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, with RoHS exemptions noted. These certifications support safe, compliant operation in global electrical installations, streamline procurement for regulated projects, and help ensure traceability and conformity during audits and inspections.
With 250 mating cycles, gold-plated contacts, and robust IP68/69K sealing, the UTS6JC8E98PW minimizes downtime and maintenance intervals in automated lines. Its compact form factor and compatibility with existing UTS interfaces reduce spares and replacement time, delivering a lower total cost of ownership while supporting predictable performance in high-use applications.
