Eaton UTS6JC8E98S Connector - IP68/69K Waterproof
Part Number: UTS6JC8E98S
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector enables rugged, reliable field connections in demanding industrial environments. Engineers often battle imperfect seals, vibration, and tangled cabling in wet or oily plants—this connector is designed to address those challenges. It complies with IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemption 6.c, delivering safety and interoperability across global standards. With a compact 54 mm length and 3 gold-plated solder contacts, it supports dependable performance in tight spaces. The UTS series offers straightforward installation with a sealing gland backshell, while aligning with Souriau’s modular approach to streamline procurement and maintenance across automation, sensors, and actuators.
Product Information
Extended Description

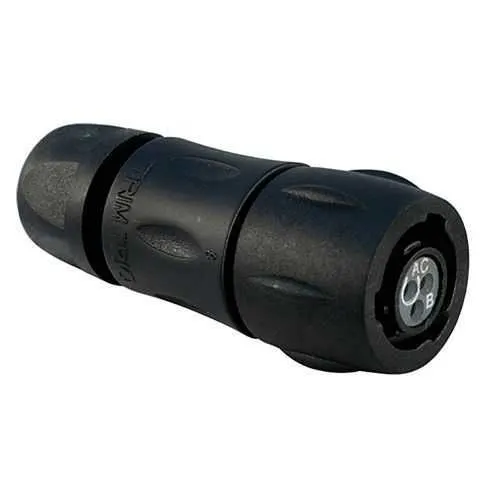

UTS6JC8E98S Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions; UTS6JC8E98S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E98S
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
14.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against acid bath
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/IP69K rating and sealing gland backshell — Business Impact: Exceptional ingress protection and long-term reliability in washdown and oil-rich environments, reducing unplanned downtime. Application: Automation panels, robotic arms, and sensor housings in food and beverage, automotive, or process industries. Feature: 7 A current rating with 50 V IEC and 250 V UL/CSA test voltages — Business Impact: Safe operation on small-control circuits with ample headroom, minimizing overdesign while ensuring regulatory compliance. Application: Sensor networks and actuator control in compact installations. Feature: 3-pin Solder Cup contacts with gold plating — Business Impact: Low contact resistance and durable performance in vibration-prone environments, increasing connection life. Application: Field wiring to controllers and distributed I/O with reliable signal integrity. Feature: 1/3 Bayonet coupling and straight plug orientation — Business Impact: Fast, tool-free mating and secure unmated condition, improving installation speed and reducing maintenance time. Application: PLC backplanes and modular cable assemblies in tight automation spaces. Feature: Cable diameter range 1.5–6.5 mm and neoprene insert — Business Impact: Flexible cabling options and robust strain relief to prevent micro-movements and wear, lowering warranty costs. Application: Hydraulics, pneumatic control lines, and sensor cables in harsh environments. Feature: Operating temperature −40 to 105 °C and 250 mating cycles — Business Impact: Suitability for extreme temperatures and repetitive mating, delivering dependable lifecycle performance. Application: Outdoor or machinery-mounted connectors in mining, metals, and energy sectors.
Get a Quick Quote for a Eaton UTS6JC8E98S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E98S?
Enquire Now
FAQs
This connector uses a cable gland backshell and a sealing gland back shell, offering straightforward sealing and strain relief for wires with a diameter range of 1.5 to 6.5 mm. Orientation is straight, and it ships with a ready-to-mate plug configuration, simplifying field installation and reducing assembly time in control panels.
The UTS6JC8E98S provides 7 A current rating (IEC/UL/CSA) and supports test voltages of 50 V IEC and 250 V UL/CSA. Contacts are gold-plated Solder Cup type, with 3 contacts total. Mating cycles are rated at 250, ensuring repeatable connections in cycling environments.
Yes. The connector offers IP68 protection and IEC 61984 compliance, with robust resistance to mineral oil, UV exposure, gasoline, and various chemical baths. Its neoprene insert, sealing gland, and robust plastic shell help maintain performance in washdown and outdoor environments.
Key certifications include UL 1977, CSA-C22.2 No.182.3, IEC 61984, and RoHS exemption 6.c. These support safety, compatibility with other components, and compliance in multinational deployments, which is essential for global automation projects.
With 250 mating cycles and a lightweight 14.6 g weight, the UTS6JC8E98S offers durable performance in recurring connection tasks. Its versatile backshell and cable gland configuration reduce wear at the mating interface, lowering replacement frequency and maintenance costs in robotics and process lines.
