Eaton UTS6JC8E98SW Plastic Waterproof IP68/69K Connector - IP68/69K
Part Number: UTS6JC8E98SW
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69K connector provides reliable power and signal coupling in harsh industrial automation setups. Engineers confront moisture ingress, wash-down exposure, and repetitive mating that can jeopardize connection integrity. Compliances include ROHS exemption 6.c, UL 1977, CSA-C22.2 No.182.3, and IEC 61984, delivering safety and regulatory confidence. This solution offers robust waterproofing, rugged durability, and easy field service, helping you minimize downtime and maintenance costs while enabling scalable installation across factories and outdoor equipment. The combination of reliability, rapid mating, and wide compatibility supports modern automation architectures with a focus on uptime and long-term total cost of ownership.
Product Information
Extended Description

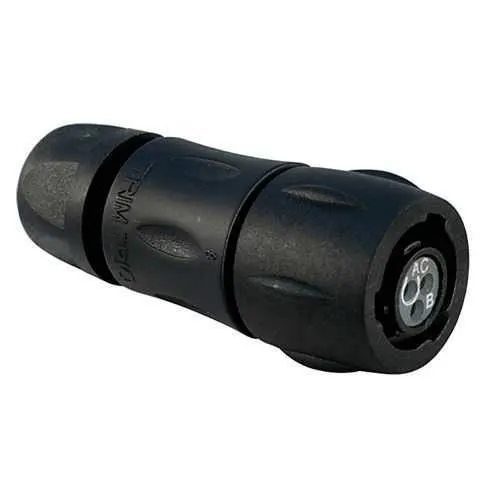

UTS6JC8E98SW Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC8E98SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E98SW
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
14.6 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
250 V UL 250 V CSA 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/69K plastic housing provides proven waterproofing even in unmated conditions. Business Impact: dramatically reduces ingress-related failures in wash-down zones and outdoor installations. Application: pump stations, conveyors, and outdoor sensors in harsh environments. Feature: 3 female solder contacts with gold plating. Business Impact: ensures low contact resistance, high corrosion resistance, and reliable signal transmission for critical control loops. Application: signal and small-power interconnects in automation networks. Feature: 1/3 bayonet coupling with straight plug. Business Impact: fast, secure mating with minimal downtime, ideal for maintenance-heavy lines. Application: field changes and modular installations in confined panels. Feature: Backshell with sealing gland and cable diameter range 1.5–6.5 mm. Business Impact: simplifies installation and ensures a robust seal across a wide cable set. Application: weather-exposed equipment and damp environments. Feature: Operating temperature -40 to 105 C and 7 A at 250 V. Business Impact: supports extreme industrial temperatures and reliable power delivery with compliance. Application: motors, actuators, and sensors in temp-fluctuating facilities. Feature: 54 mm length, 22.4 mm width, 22.4 mm height; 14.6 g weight. Business Impact: compact footprint for dense panel layouts and lightweight assemblies. Application: aerospace-like or space-constrained industrial cabinets. Feature: 250 mating cycles. Business Impact: long service life and reduced replacement costs. Application: high-use automation lines.
Get a Quick Quote for a Eaton UTS6JC8E98SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E98SW?
Enquire Now
FAQs
The UTS6JC8E98SW is a straight plug with a sealing gland backshell designed for cables 1.5 to 6.5 mm in diameter and a W orientation. Plan for a compact 54 mm depth and ensure a clean panel cut with proper gland seal to maintain IP68 performance. Use the 1/3 bayonet coupling for quick, repeatable mating without tools, reducing downtime during panel upgrades.
The 1/3 bayonet coupling provides a fast, secure engage/disengage action that resists vibration and accidental disconnection. In harsh environments, this translates to quicker field servicing, easier rope-access or enclosure maintenance, and less risk of partial mating that could compromise seal integrity.
Yes. The UTS6JC8E98SW carries compliance references including UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption 6.c. Always verify the exact approval scope for your installation and regional requirements, but this connector is designed to support safety certifications typical for industrial interconnects.
The connector is rated for 7 A continuous current at 250 V across IEC/UL/CSA standards, with a test current of 7 A and test voltage of 250 V UL/CSA. It supports 3 contacts in a single socket, and the gold-plated solder cups provide reliable conductivity in demanding environments.
Its IP68 waterproof rating (IP68/69K unmated) combined with UV, oil, and chemical resistance, plus a sealing gland backshell, makes it suitable for outdoor use and wash-down areas. The 54 mm length and 8-shell size, 3-contact configuration, and temperature range -40 to 105 C enable dependable operation in factories, outdoor machinery, and equipment exposed to moisture and contaminants.
