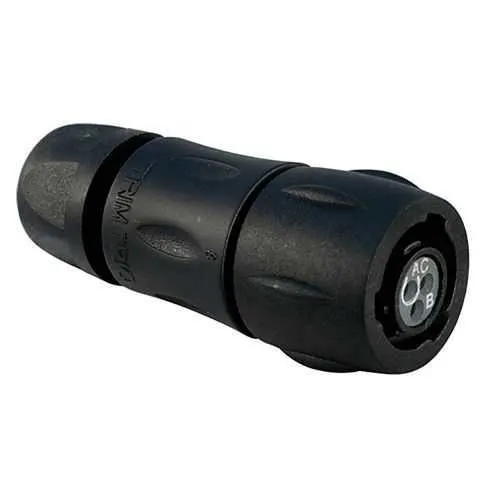

Eaton UTS6JC8E98SX Plastic Waterproof Connector IP68/69K
Part Number: UTS6JC8E98SX
Quick Summary
The Eaton Souriau UTS6JC8E98SX is a plastic waterproof IP68/69K connector designed for harsh industrial environments. In demanding applications, moisture ingress, vibrations, and chemical exposure can compromise connections and uptime. It complies with RoHS exemption 6.c, UL 1977, CSA-C22.2 No.182.3, and IEC 61984, supporting regulatory and safety requirements. Designed for straightforward compatibility with standard backshells and 3-pin solder-contact layouts, it helps reduce assembly time and maintenance costs across automotive, machinery, and process industries.
Product Information
Extended Description
UTS6JC8E98SX Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC8E98SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC8E98SX
Product Length/Depth
54 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
14.6 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Cable diameter - max
6.5 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/69K sealing provides unmated protection for washdowns and outdoor installations. Benefit: Improves uptime and reduces field failure risk in water, dust, and oil environments. Application: Ideal for automated machinery, outdoor equipment, and process lines where strict sealing is essential. Feature: 3 female gold-plated solder contacts (Solder Cup) ensures low resistance, corrosion resistance, and reliable signal transmission. Benefit: Extends connector life and reduces maintenance costs in demanding electrical harnesses. Application: Sensor and actuator harnesses, control panels, and junctions in harsh factories. Feature: 1/3 bayonet coupling with straight backshell and sealing gland backshell type enables quick, secure mating even in tight spaces. Benefit: Faster assembly, vibration resistance, and dependable seals in dynamic environments. Application: Field service and panel-mount connections in robotics and packaging systems. Feature: Operating range -40 to 105 °C, rated 7 A, and mating cycles up to 250 ensure broad electrical duty and long service life. Benefit: Supports diverse industrial applications with predictable performance. Application: Heavy machinery, conveyors, and water/chemical processing lines. Feature: Neoprene insert, 54 mm length, 22.4 mm width, 22.4 mm height, and 54 mm depth with a 6.5 mm max/cable diameter and 1.5 mm min. Benefit: Provides compact, adaptable installation with wide cable accommodation. Application: Custom harnesses and space-constrained panels in machine tools and automation systems.
Get a Quick Quote for a Eaton UTS6JC8E98SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC8E98SX?
Enquire Now
FAQs
The UTS6JC8E98SX uses a sealing gland backshell and a straight backshell with 1/3 bayonet coupling. Ensure the cable diameter is within 1.5 to 6.5 mm and crimp or solder the three gold-plated contacts correctly in the 3-pin socket configuration. Align keying X, mate firmly, then secure with appropriate backshell accessories for a water-tight seal.
This connector provides a 7 A electrical rating per IEC and UL standards, with a test voltage up to 250 V (IEC/CSA/UL). It supports 3 contacts with solder cup contacts and is designed for robust duty in industrial environments, including repetitive mating cycles up to 250. Always verify system voltage and current budgets for your specific harness.
Yes. It is rated IP68 in unmated conditions and UV resistant, with resistance to mineral oil, acids, bases, and gasoline. It withstands operating temperatures from -40 °C to 105 °C and supports vibrations from 10 to 2000 Hz, making it suitable for washdown areas, outdoor installations, and equipment exposed to challenging chemicals.
The connector complies with RoHS exemption 6.c, UL 1977, CSA-C22.2 No.182.3, and IEC 61984. These certifications support safety, environmental, and regulatory requirements across North American and international markets.
With a 250 mating cycle rating and durable plastic housing, the UTS6JC8E98SX reduces replacement frequency and maintenance downtime. The 7 A rating and gold-plated contacts ensure long-term electrical reliability, while IP68/69K sealing minimizes field service interruptions in washdown or oil-exposed environments, delivering lower lifecycle costs and higher equipment uptime.
