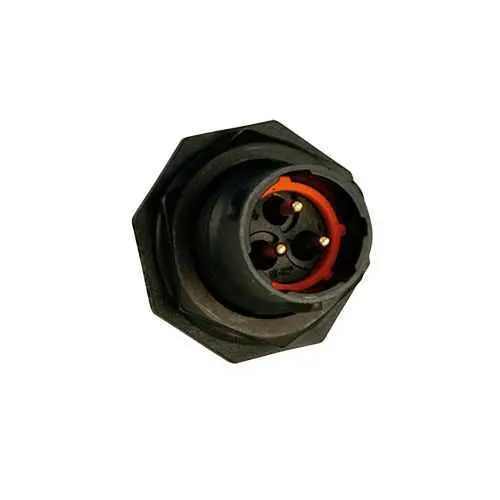

Eaton UTS7103P Receptacle - Plastic Waterproof IP68/69K
Part Number: UTS7103P
Quick Summary
Eaton UTS7103P is a plastic waterproof IP68/69K receptacle for rugged automation and outdoor equipment connections. In demanding environments, ingress, vibration, and field failures can erode uptime; this connector helps engineers ensure reliable seals and consistent performance. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, providing a strong regulatory foundation for industrial applications. The compact, three-position layout supports easy panel integration, while the durable polyamide insert and aluminium nut deliver long-term value in automation, robotics, and outdoor machinery. By leveraging Souriau UTS series design principles, this receptacle offers robust connectivity with straightforward installation and predictable lifecycle costs.
Product Information
Extended Description
UTS7103P Eaton: Plastic jam nut receptacle, without backshell, for 3 male contacts, IP68/69K; UTS7103P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7103P
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.8 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Layout with ground cavity First mate last break capability Last mate first break capability(optional)
Environmental conditions
REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS Fire & Smoke
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against basic bath
Test current
16 A IEC 10 A UL 7 A CSA
Test voltage
500 V CSA 500 V UL 300 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
3
Number of cavity #16
3
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: The UTS7103P uses a 1/3 Bayonet coupling with a jam nut receptacle for a quick, secure mating, reducing installation time and tightening lock-in against vibration in conveyor systems and robotic cells. This directly improves uptime and reduces field rework in harsh environments where maintenance windows are limited. Feature → Business Impact → Application: IP68 sealing and UV-resistant plastic shell protect three 16 A IEC / 10 A UL rated contacts from water, dust, and exposure, enabling reliable outdoor deployments on mobile equipment and outdoor automation panels. This minimizes ingress-related failures in construction yards, offshore, or agricultural machinery. Feature → Business Impact → Application: Ground cavity layout with First Mate Last Break and Last Mate First Break options simplifies hot-swapping and service work, lowering maintenance costs in mission-critical electrical assemblies. Feature → Business Impact → Application: 33.9 mm length, 27 mm width, 27 mm height with a 3-contact cavity supports compact, space-efficient panel installations in control cabinets and portable equipment. Feature → Business Impact → Application: 250 mating cycles and operating temperature range from -40 °C to 105 °C ensure reliable performance across cold starts and high-temperature cycles typical in automotive, packaging, and material handling environments. Feature → Business Impact → Application: Crimp contact delivery and aluminium nut provide assembly flexibility and durable mechanical coupling, reducing reinstall time and improving field maintainability in harsh environments.
Get a Quick Quote for a Eaton UTS7103P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7103P?
Enquire Now
FAQs
The UTS7103P is a jam nut receptacle intended for panel mounting. Align the 3-position crimp contacts with the mating plug, tighten the jam nut to seal against ingress, and ensure correct ground cavity orientation. The 1/3 bayonet coupling enables quick, secure mating, while the optional grounding arrangement supports First Mate Last Break or Last Mate First Break configurations as required by your maintenance strategy.
This receptacle provides 16 A IEC and 10 A UL current ratings, with a test voltage of up to 500 V (CSA/UL) and 300 V (IEC). It operates from -40 °C to 105 °C and offers IP68 sealing. It is designed for 250 mating cycles and is UV and oil resistant, suitable for demanding automotive, automation, and outdoor equipment environments.
Yes. The IP68/IP69K-rated plastic shell, combined with UV resistance and oil/gasoline compatibility, makes it well-suited for outdoor automation, conveyors, and mobile equipment. The three-contact layout supports compact power and control connections, while the robust sealing reduces ingress-related downtime in harsh environments.
The connector complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, ensuring regulatory confidence for industrial and electrical installations. It also features a UL94 V0 flammability rating and a RoHS-compliant polyamide insert, aligning with modern safety and environmental requirements.
With up to 250 mating cycles and an IP68/69K seal, the UTS7103P reduces maintenance frequency and downtime. Its ground cavity options and easy field serviceability minimize repair time, while the durable plastic construction lowers replacement costs in long-running automation lines, conveyors, and outdoor equipment.
