Eaton UTS7103S Connector - IP68/69K Waterproof
Part Number: UTS7103S
Quick Summary
Eaton UTS7103S is a plastic waterproof IP68/69K receptacle connector for harsh-environment machinery and outdoor equipment. Engineers struggle with ingress protection and reliable mating under vibration in demanding installations. Compliances include UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring cross-border regulatory alignment. As a 3‑cavity jam-nut receptacle with crimp contacts, it offers field-friendly installation and a long service life, helping OEMs reduce maintenance costs while maintaining uptime in tough environments.
Product Information
Extended Description

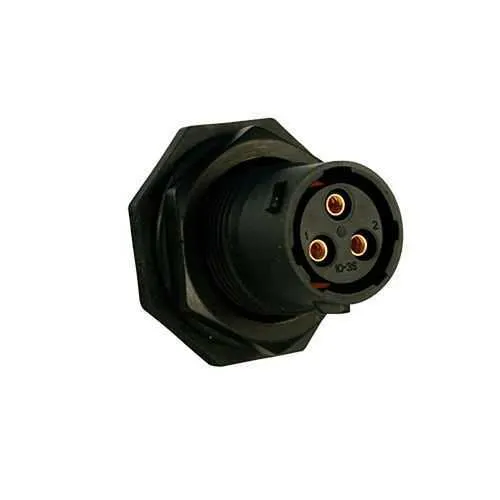

UTS7103S Eaton: Plastic jam nut receptacle, without backshell, for 3 female contacts, IP68/69K; UTS7103S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7103S
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.9 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0 RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against mineral oil Resistant against basic bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
500 V CSA 500 V UL 300 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
3
Number of cavity #16
3
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K protection guards against water ingress, dust, and washdown contaminants. This elevates equipment reliability, minimizes unplanned downtime, and extends service intervals in food processing, outdoor automation, and heavy industry where cleanliness and ruggedness are critical. The compact 3‑cavity jam-nut receptacle enables secure mounting in tight panels, reducing wiring complexity while maintaining a clear, robust ground path. With an aluminium nut and polyamide insert, the unit delivers corrosion resistance and dependable crimp contacts, enhancing long-term connection integrity in vibration-prone environments. Operating from -40 °C to 105 °C, UV resistance and chemical tolerance (including mineral oil and basic baths) preserve performance in outdoor or harsh indoor settings. The 250 mating cycles and 16 A IEC current rating support dependable, repeatable connections through lifecycle wear and maintenance cycles.
