Eaton UTS7103W3P Receptacle - IP68/69K Waterproof Bayonet
Part Number: UTS7103W3P
Quick Summary
The Eaton UTS7103W3P is a plastic waterproof IP68/69K receptacle designed for rugged industrial equipment and field installations. Users face moisture ingress, vibration, and downtime during field service, making reliable connectors critical. The design meets UL 1977 and IEC 61984 standards, with CSA-C22.2 No.182.3 noted for added regulatory confidence. As a Souriau UTS series component with a 1/3 bayonet coupling, it delivers rugged performance, ease of procurement, and long service life, supporting maintenance reductions and safer operations.
Product Information
Extended Description

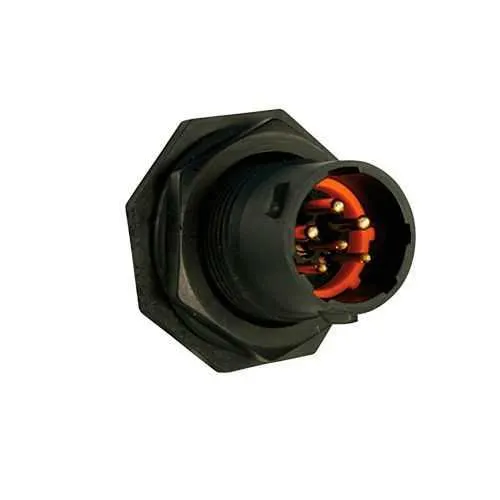

UTS7103W3P Eaton: Plastic jam nut receptacle, without backshell, for 6 male contacts, IP68/69K; UTS7103W3P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7103W3P
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.3 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 RoHS REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
10 A UL 7 A CSA 5 A IEC
Test voltage
32 V IEC 500 V UL 500 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3W3
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Nut material
Aluminium
Salt spray
500 hour
IP68/69K waterproof jam-nut receptacle provides robust ingress protection, reducing moisture-related failures and maintenance costs in outdoor or wet environments. This translates to fewer field service interruptions and higher equipment uptime, essential for mining, water treatment, and outdoor machinery in harsh climates. The 6 contact, 3W3 layout supports compact wiring while maintaining reliability in high-vibration contexts, cutting rework time during panel assembly and field retrofits. The 1/3 bayonet coupling enables quick, tool-light mating and disconnection, delivering faster installation and service while maintaining secure, vibration-resistant connections. With a -40 to 105 °C operating range, 250 mating cycles, and resistance to oils, fuels, and UV exposure, the solution ensures long-term performance in extreme environments, minimizing lifecycle costs. Insert material is Polyamide and shell is Plastic, balancing light weight with durability, while RoHS and REACH compliance support global supply chains and regulatory alignment. The receptacle accommodates 6 contacts across #16 and #20 cavities, enabling versatile power and signal configurations for industrial automation panels and mobile equipment. Fitted options for Last mate first break or First mate last break provide installation flexibility to match maintenance practices and reduce unplanned downtime.
