Eaton UTS7104P Receptacle - IP68/69K 1/3 Bayonet
Part Number: UTS7104P
Quick Summary
The Eaton UTS7104P receptacle provides rugged, waterproof connectivity for harsh industrial environments. Field engineers often struggle with water ingress and mis-mating in demanding conditions, which can lead to unplanned downtime. This solution carries IEC 61984, CSA-C22.2 No.182.3, and UL 1977 certifications for reliability and safety in global applications. With a compact jam-nut receptacle design, 4-pin layout, and 1/3 bayonet coupling, it supports outdoor and mobile equipment while aligning with RoHS and UL94 V0 requirements, delivering long-term cost savings and dependable performance.
Product Information
Extended Description

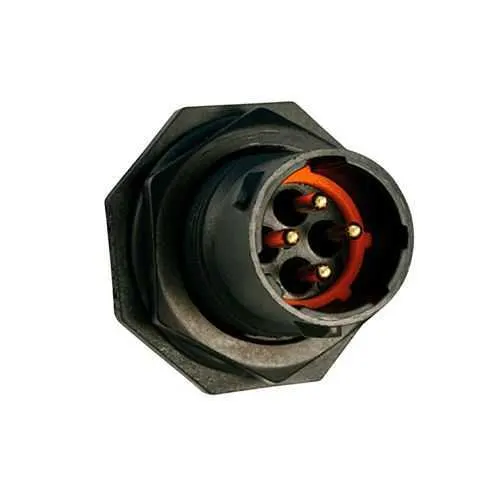

UTS7104P Eaton: Plastic jam nut receptacle, without backshell, for 4 male contacts, IP68/69K; UTS7104P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7104P
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.6 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
13 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
RoHS Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against oil Resistant against mineral oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath
Test current
7 A CSA 13 A IEC 10 A UL
Test voltage
500 V CSA 150 V IEC 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
