Eaton UTS7104S Receptacle - IP68/69K Waterproof Connector
Part Number: UTS7104S
Quick Summary
Eaton UTS7104S waterproof connector provides 4‑pole power and data connections for harsh industrial environments. Engineers often struggle with sealing integrity, field service downtime, and complex panel wiring in outdoor or mobile equipment. The IP68/69K rating, UL 1977/IEC 61984 compliance, and RoHS/REACH sustainability features help ensure reliable performance across challenging conditions. This compact, lightweight solution is ideal for automation panels and mobile machinery, delivering robust sealing, easier installation, and long life to reduce maintenance costs and supply chain complexity.
Product Information
Extended Description

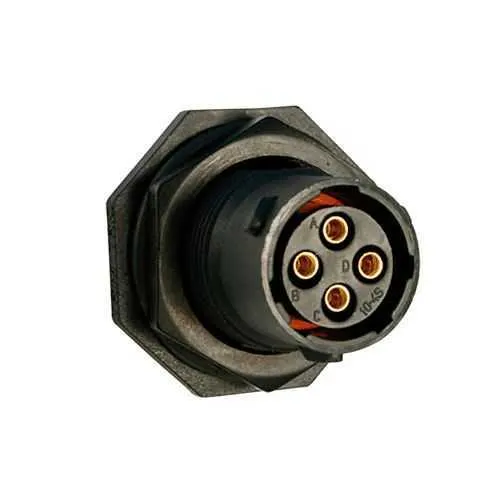

UTS7104S Eaton: Plastic jam nut receptacle, without backshell, for 4 female contacts, IP68/69K; UTS7104S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7104S
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.6 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A UL 13 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
REACH Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against acid bath Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
13 A IEC 10 A UL 7 A CSA
Test voltage
500 V CSA 150 V IEC 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K sealing protects against water and dust ingress in harsh environments, reducing field failure risk and improving uptime in outdoor automation. The 4‑cavity receptacle uses four crimp contacts and a 1/3 bayonet coupling for fast, vibration‑resistant mating, enabling quicker harness assembly and faster service interventions on the line. With a compact 33.9 mm depth and 27 mm square footprint, and a weight of just 8.6 g, it supports lightweight, space‑efficient wiring in dense control panels. Operating from -40 °C to 105 °C and resistant to UV, oil, and chemical exposure, it offers predictable performance in extreme settings and long lifecycle reliability with up to 250 mating cycles. The combination of polyamide insert, plastic shell, and aluminum nut delivers durable, corrosion‑resistant construction for demanding environments. Optional first mate/last break configurations simplify maintenance planning, while the connector remains compatible with standard crimp contacts and modular backshell options for expanded installation flexibility.
