Eaton UTS7104SW Plastic Waterproof Receptacle IP68/69K
Part Number: UTS7104SW
Quick Summary
The Eaton UTS7104SW is a plastic waterproof receptacle connector designed for rugged, IP68/69K-rated equipment. Engineers often struggle with sealing, vibration, and reliable mating in harsh environments. UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications provide confidence for industrial control, automation, and safety requirements. Designed to support the Souriau UTS series ecosystem, it pairs with crimp contacts and tamper-resistant mounting, delivering reliability and reduced maintenance costs for conveyors, robotics, and mobile equipment. The compact 33.9 mm length and 27 mm width integrate into tight assemblies without compromising sealing, allowing OEMs to standardize parts across platforms. This translates to faster onboarding and lower field rework.
Product Information
Extended Description

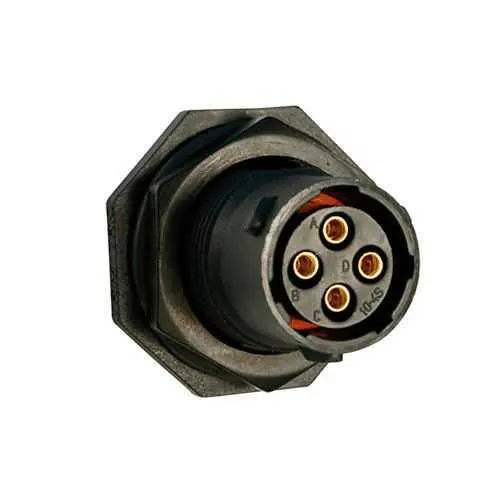

UTS7104SW Eaton: Plastic jam nut receptacle, without backshell, for 4 female contacts, IP68/69K, keying W; UTS7104SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7104SW
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.6 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 13 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil
Test current
7 A CSA 10 A UL 13 A IEC
Test voltage
500 V CSA 150 V IEC 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
IP68/69K sealing and robust environmental resistance deliver dependable performance in outdoor and mobile equipment, reducing unplanned downtime and maintenance costs. This translates to higher line efficiency and greater uptime for conveyors and automated systems, where ingress protection is critical for reliability. The four-contact cavity and crimp contact delivery enable clean, dense wiring in compact assemblies, supporting streamlined harnessing and scalable automation architecture while maintaining compliance with UL, IEC, and CSA standards in industrial settings. The 1/3 Bayonet coupling and jam nut receptacle design simplify installation and serviceability, delivering fast mating and secure retention during vibration or impact events common in robotics and material handling. With a -40 to 105 °C operating range, UV resistance, and oil/chemical tolerance, the connector supports outdoor enclosures, off-road machinery, and maintenance-intensive environments without sacrificing performance. The Souriau UTS series compatibility ensures a uniform ecosystem across product lines, reducing part proliferation and enabling faster BOM optimization for OEMs and integrators.
