Eaton UTS7106P Receptacle - IP68/69K Waterproof
Part Number: UTS7106P
Quick Summary
Eaton UTS7106P Receptacle is a rugged IP68/69K waterproof connector designed for harsh industrial equipment. Engineers often wrestle with moisture ingress, downtime, and difficult field maintenance; this receptacle addresses those challenges with a robust jam-nut design and reliable sealing. UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications provide safety, interoperability, and long-term compliance in demanding environments. With six contacts and a compact 33.9 mm length, it offers scalable wiring for automation projects while delivering cost efficiency and lower maintenance in harsh settings.
Product Information
Extended Description

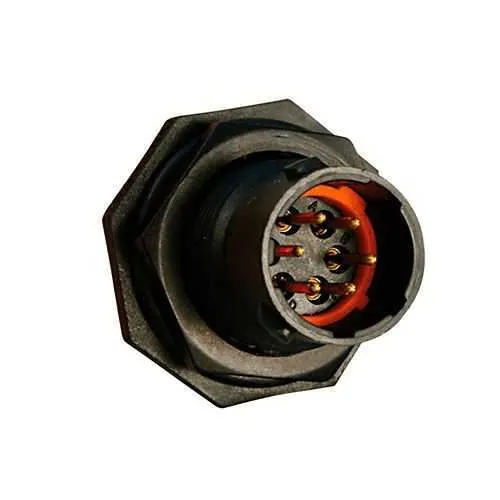

UTS7106P Eaton: Plastic jam nut receptacle, without backshell, for 6 male contacts, IP68/69K; UTS7106P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7106P
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.6 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS Fire & Smoke
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 6 A UL 7 A IEC
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K waterproof rating ensures reliable operation in wet, dusty, or wash-down environments, reducing failure rates and unplanned downtime in制造业 and process automation. This translates to extended equipment life and lower maintenance costs during long-term installations. Application: packaging lines, conveyors, and outdoor machinery where moisture exposure is common. Feature → Business Impact → Application: 6-contact layout with a jam-nut receptacle and 1/3 bayonet coupling enables quick, secure mating and straightforward field installation. Benefit: faster assembly, fewer mis-matings, and reduced manual handling time on the plant floor. Application: control cabinets and remote sensor modules needing compact yet sturdy interconnects. Feature → Business Impact → Application: Current rating of 7 A IEC (6 A UL) and test current up to 7 A IEC provide reliable power transfer for small-to-mid scale automation circuits. Benefit: predictable performance and compliance with multiple regional standards. Application: servo drives, small motor controllers, and sensor assemblies. Feature → Business Impact → Application: Operating temperature range from -40 °C to 105 °C supports outdoor and high-heat machine environments. Benefit: fewer climate-related failures and broader deployment across global facilities. Application: outdoor equipment, mining gear, agricultural machinery. Feature → Business Impact → Application: UV resistance, oil and chemical resistance, and salt spray tolerance extend service life in harsh environments. Benefit: longer intervals between maintenance and lower lifecycle costs. Application: machinery exposed to oils, fuels, or wide temperature swings. Feature → Business Impact → Application: Aluminum nut, polyamide insert, and plastic shell deliver a lightweight yet durable assembly with good corrosion resistance. Benefit: easier handling during installation and reduced weight in modular systems. Application: rugged automation panels and portable equipment requiring sturdy interconnects.
