Eaton UTS7106PW Connector - IP68/IP69K Plastic Waterproof
Part Number: UTS7106PW
Quick Summary
Eaton UTS7106PW Connector is a plastic waterproof 6‑contact receptacle for rugged industrial applications. Engineers face moisture ingress and downtime in harsh spaces; this solution reduces those risks. It is certified to IEC 61984, UL 1977, and CSA-C22.2 No.182.3, supporting global safety compliance. Designed for quick installation and durable service, it supports compact layouts and lowers maintenance costs for OEMs and service teams, while integrating seamlessly with Souriau UTS series jam-nut receptacles in tight control panels.
Product Information
Extended Description

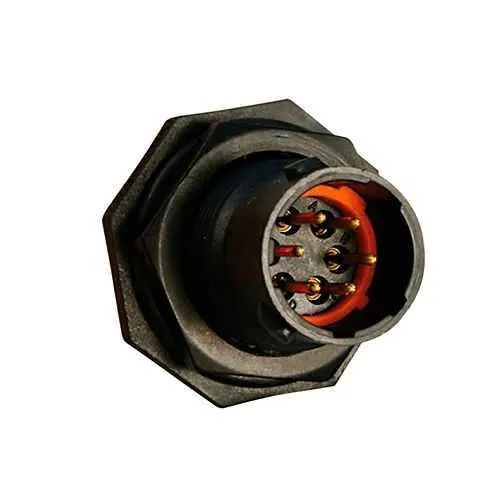

UTS7106PW Eaton: Plastic jam nut receptacle, without backshell, for 6 male contacts, IP68/69K, keying W; UTS7106PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7106PW
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against gasoline Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 6 A UL 7 A IEC
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K protection and environmental sealing. Business Impact: Improves reliability in wet, dusty environments, reducing unplanned downtime and warranty costs. Application: Outdoor automation, mining equipment, and mobile machinery. Feature: 6-position jam-nut receptacle with 1/3 bayonet coupling and W-keying. Business Impact: Simplifies field assembly and ensures proper mating, accelerating installation and service. Application: Panel-mounted harnesses and compact control stations. Feature: Polyamide insert, plastic shell, and aluminium nut with UV resistance. Business Impact: Delivers long-term durability under solar exposure and chemical spills, extending service life. Application: Mobile equipment, agricultural machinery, and construction gear. Feature: Operating temperature range -40 °C to 105 °C and mating cycles up to 250. Business Impact: Maintains performance in extreme climates and supports frequent connector mating. Application: Industrial automation and off-highway systems. Feature: Small footprint and precise dimensions (33.9 mm length, 27 mm width/height). Business Impact: Enables tighter enclosure design and faster installation. Application: Compact control panels and space-constrained equipment. Feature: Compliance with UL 1977, IEC 61984, and CSA-C22.2 No.182.3. Business Impact: Facilitates regulatory approvals and risk mitigation for global deployments. Application: Regulated industries and international manufacturing lines.
Get a Quick Quote for a Eaton UTS7106PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7106PW?
Enquire Now
FAQs
The UTS7106PW uses a jam-nut receptacle with a 1/3 bayonet coupling, designed for straightforward installation. Align the connector with the mating half, engage the bayonet lugs, and tighten the nut to achieve IP68 sealing. This approach reduces assembly time and ensures consistent sealing in wet environments.
The connector provides a current rating of up to 7 A (IEC), 6 A (UL), and 4 A (CSA) with a test voltage up to 32 V (IEC) / 250 V (CSA/UL). It supports up to 250 mating cycles, making it suitable for equipment requiring repeated mating and demating without performance loss.
Yes. It is rated IP68 and IP69K, offering robust protection against water ingress and high-pressure washdowns. The UV-resistant polyamide insert and durable shell further enhance longevity in exposed outdoor installations and demanding industrial sites.
The UTS7106PW complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3. These certifications support safety compliance in global markets and help meet regulatory requirements for industrial automation and electrical installations.
The connector offers reliable sealing, a compact footprint, and high mating durability, reducing maintenance cycles and downtime. Its robust construction supports rugged deployments in harsh environments, enabling longer service life and lower total cost of ownership for OEMs and industrial users.
