Eaton UTS7106SW Receptacle - IP68/69K Waterproof
Part Number: UTS7106SW
Quick Summary
Eaton UTS7106SW receptacle provides a rugged IP68/69K waterproof 6-pin connection for harsh environments in industrial equipment. Design teams often battle water ingress, vibrations, and tight mounting constraints that drive downtime. This model complies with IEC 61984, CSA-C22.2 No.182.3, and UL 1977, delivering regulatory confidence. With W-keying, jam-nut receptacle construction, and 1/3 bayonet coupling, field installation is faster and more reliable. For cost-conscious projects, its lightweight plastic body and durable seals support reduced maintenance and spare-part costs while maintaining dependable performance in automation panels.
Product Information
Extended Description

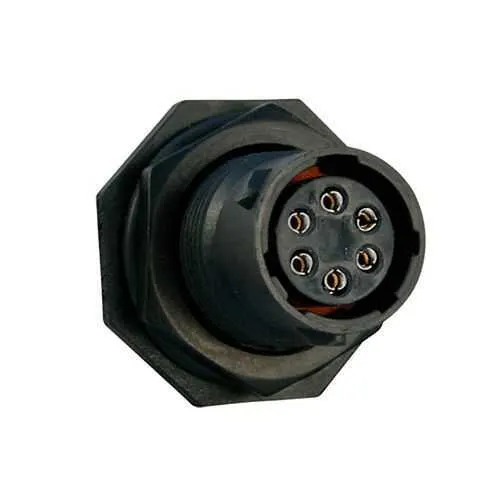

UTS7106SW Eaton: Plastic jam nut receptacle, without backshell, for 6 female contacts, IP68/69K, keying W; UTS7106SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7106SW
Product Length/Depth
33.9 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
8.6 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Flammability rating UL94 V0 RoHS Fire & Smoke REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath Resistant against oil Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath
Test current
6 A UL 7 A IEC 4 A CSA
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
500 hour
Feature → The UTS7106SW uses IP68/IP69K protection with a jam-nut receptacle design for six cavities. Business Impact → This delivers ingress protection in washdowns and outdoor installations, reducing unexpected downtime and warranty costs. Application → Ideal for rugged control panels in outdoor automation, mobile machinery, and robotics where sealing and reliability matter. Feature → 6-position, crimp contact arrangement with 7 A IEC and 6 A UL ratings plus 250 mating cycles. Business Impact → Supports robust power and signal transmission with predictable lifecycle, lowering replacement and maintenance costs. Application → Suitable for control circuits, sensors, and actuator interfaces in industrial automation. Feature → Operating temperature range from -40 °C to 105 °C and UV, chemical, and oil resistance. Business Impact → Ensures reliability in extreme climates and harsh environments, reducing service intervals and part turnover. Application → Applicable to outdoor equipment, automotive interfaces, and washdown-ready systems. Feature → 1/3 Bayonet coupling with W orientation and a jam-nut receptacle; insert material polyamide; shell plastic; aluminium nut. Business Impact → Quick, tool-free mating and secure mounting that saves assembly time and minimizes installation errors. Application → Harness assemblies in compact equipment where space is at a premium. Feature → Compact footprint: 33.9 mm length, 27 mm width, 27 mm height; weight 8.6 g; 6 cavities; 6 contacts; salt spray 500 h. Business Impact → Lightweight, space-efficient design translates to easier integration and lower harness weight. Application → Control panels and enclosures with tight spatial constraints. Feature → Regulatory and documentation support including IEC 61984, UL 1977, CSA compliance and downloadable drawings. Business Impact → Streamlines certification processes and procurement with clear specifications and validated data. Application → Engineering validation and supplier qualification for automation projects.
