Eaton UTS710E6PWM16 Waterproof Receptacle - IP68/69K
Part Number: UTS710E6PWM16
Quick Summary
UTS710E6PWM16 waterproof receptacle by Eaton delivers reliable power in harsh industrial environments. Engineered to resist moisture, dust, and temperature swings, it minimizes downtime caused by water ingress in outdoor equipment and wet processes. This connector line carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications with ROHS exemption 6.c, ensuring compliance across automation kits. Its compact 21.5 mm length, 27 mm width, and 27 mm height, coupled with a 10.3 g weight and 6 gold-plated solder contacts, enable tight panel layouts while delivering dependable performance up to 250 V and 7 A IEC specifications. Designed for durable operation, it supports up to 250 mating cycles and operates from -40 °C to 105 °C, translating to reduced maintenance and longer service life.
Product Information
Extended Description

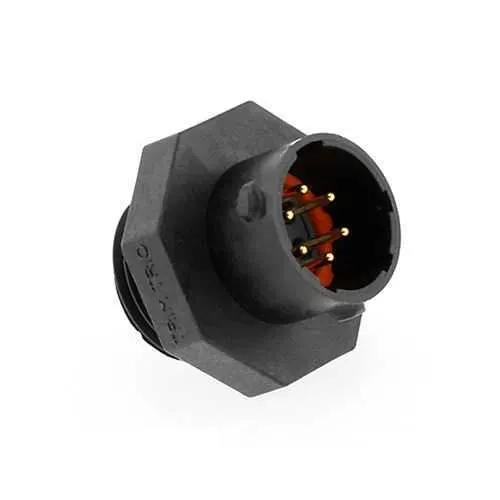

UTS710E6PWM16 Eaton: Plastic threaded receptacle, without backshell, with 6 male solder contacts, IP68/69K in unmated conditions, keying W; UTS710E6PWM16
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS710E6PWM16
Product Length/Depth
21.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
10.3 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 6 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against gasoline Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
7 A IEC 6 A UL 6 A CSA
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/IP69K sealing provides robust ingress protection, reducing field failures in wash-down or outdoor conditions while maintaining signal integrity in automation panels. This translates to higher equipment uptime, lower warranty costs, and improved overall line efficiency in harsh environments. The 6-pin, gold-plated solder cup contacts deliver low contact resistance and reliable current transfer, supporting 7 A IEC and 6 A UL ratings at 250 V, which enhances performance in power and control circuits for robotics and packaging lines. The 1/3 bayonet coupling paired with a threaded receptacle enables fast, secure mating and vibration resistance, simplifying field installation and reducing labor time during panel builds. Neoprene insert and plastic shell provide durable sealing and UV resistance, helping parts resist aging and oil exposure in industrial settings. With a compact footprint (21.5 mm depth, 27 x 27 mm), engineers gain flexibility for tight control panels and rugged outdoor assemblies while maintaining compliance with RoHS exemptions and standard Souriau UTS series compatibility. This combination addresses common objections about size, durability, and maintenance cost by delivering a robust, easily installed, and long-lasting connection solution for automation equipment and wash-down environments.
Get a Quick Quote for a Eaton UTS710E6PWM16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS710E6PWM16?
Enquire Now
FAQs
The UTS710E6PWM16 complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications support safe use in automation panels, equipment interconnections, and international installations, helping ensure regulatory alignment and straightforward procurement for projects with dual- or multi-region requirements.
Yes. It is rated IP68 and is designed for harsh environments, including wash-down and outdoor applications. The Neoprene insert, UV resistance, and oils resistance contribute to long-term seal integrity, while the operating temperature range of -40 °C to 105 °C supports outdoor and demanding industrial use.
The connector offers a current rating of 7 A IEC and 6 A UL, with a test current of 7 A IEC / 6 A UL / 6 A CSA and a test voltage up to 250 V UL (250 V CSA) or 32 V IEC. It supports up to 250 mating cycles, ensuring durability in frequent mating and unmating scenarios common in automation and robotics installations.
The UTS710E6PWM16 has a compact footprint: 21.5 mm depth, 27 mm height, and 27 mm width, with a 6-position layout. It features 6 gold-plated solder cup contacts for reliable signal and power transfer in tight panel spaces.
This is a threaded receptacle with a 1/3 bayonet coupling and a W orientation. There is no backshell option, which simplifies the assembly but requires proper strain relief planning in panel design. Its compact size, 6-contact interface, and RoHS-compliant materials make it suitable for automated equipment, robotics, and field-installable control panels.
