Eaton UTS710E6SM16 Receptacle - IP68/69K Waterproof
Part Number: UTS710E6SM16
Quick Summary
The Eaton Souriau UTS710E6SM16 is a plastic waterproof IP68/69K receptacle for rugged sensor and actuator connections. In demanding industrial settings, moisture ingress and vibration threaten uptime and safety. Compliances include IEC 61984, UL 1977, CSA-C22.2 No.182.3, with RoHS exemption 6.c. This combination delivers reliable sealing and quick field service while supporting compact, cost-efficient panel designs.
Product Information
Extended Description

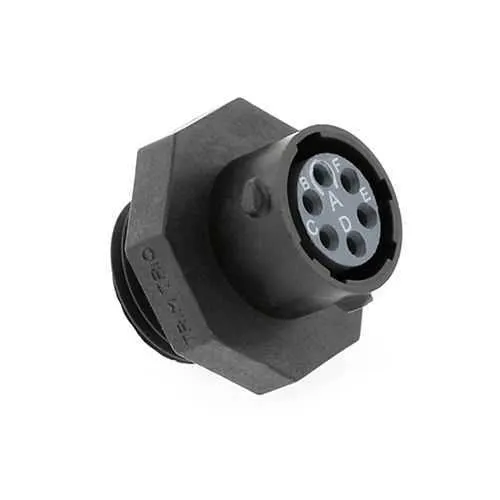

UTS710E6SM16 Eaton: Plastic threaded receptacle, without backshell, with 6 female solder contacts, IP68/69K in unmated conditions; UTS710E6SM16
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS710E6SM16
Product Length/Depth
25.3 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
11.2 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
6 A UL 7 A IEC
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline
Test current
6 A UL 7 A IEC 6 A CSA
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/IP69K rating combined with a 6-position, solder-cup contact layout minimizes ingress paths and ensures dependable performance in washdown and dusty environments, improving equipment uptime and reducing maintenance cycles. The 1/3 bayonet coupling enables fast mating and secure retention, which translates to reduced field service time and consistent electrical integrity in high-vibration applications. With gold-plated solder contacts for corrosion resistance and a threaded receptacle design, the connector delivers reliable conductivity across many cycles while maintaining a compact footprint that saves enclosure space. Operating from -40 °C to 105 °C supports outdoor and industrial environments, while up to 250 mating cycles informs lifecycle planning and total cost of ownership. No backshell option keeps the installation lean, and the Neoprene insert adds environmental sealing for aggressive fluids and UV exposure. This product is ideal for automation panels, robotic interfaces, and rugged control loops needing certified protection and robust performance.
Get a Quick Quote for a Eaton UTS710E6SM16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS710E6SM16?
Enquire Now
FAQs
The UTS710E6SM16 is a threaded receptacle with no backshell option, as specified by the product data. For enhanced protection in demanding environments, consider integrated harness assemblies or enclosure-based protection. The connector supports a compact installation with a 1/3 bayonet coupling for quick mating without a backshell.
The connector is rated for 6 A per UL and 7 A per IEC, with a test current of 6 A UL / 7 A IEC / 6 A CSA and a test voltage of 250 V UL / 32 V IEC / 250 V CSA. It uses solder cup contacts with gold plating and provides a 6-position contact layout, suitable for rugged automation wiring.
Yes. It carries IP68 protection and UV resistance, with environmental resistance against basic bath, mineral oil, oil, and other fluids. Operating temperature spans -40 °C to 105 °C, making it appropriate for outdoor, industrial, and washdown environments.
This receptacle aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c. These certifications support compliance in regulated industrial settings and multinational installations.
With a mating cycle rating of 250 and gold-plated contacts, the UTS710E6SM16 supports long-term reliability in vibration-heavy machinery and automation panels. This reduces maintenance downtime and total cost of ownership, delivering predictable lifecycle performance in demanding environments.
