Eaton UTS710E6SWM16 Plastic Waterproof Connector - IP68/69K
Part Number: UTS710E6SWM16
Quick Summary
The Eaton Souriau UTS710E6SWM16 plastic waterproof IP68/69K connector enables rugged, reliable field wiring in harsh industrial environments. This sealed receptacle minimizes ingress, vibration-induced failures, and downtime by protecting six solder cup contacts inside a compact 25.3 mm length. It carries RoHS exemption 6.c and critical approvals such as UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring safe integration across electrical systems. With a 7 A rating and up to 250 mating cycles, it provides durable performance for ongoing maintenance cycles and reduced total cost of ownership. The UTS710E6SWM16 supports efficiency gains and compliant, scalable connectivity for industrial automation projects.
Product Information
Extended Description

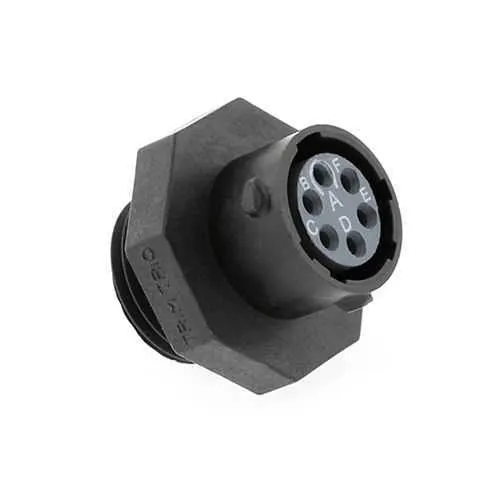

UTS710E6SWM16 Eaton: Plastic threaded receptacle, without backshell, with 6 female solder contacts, IP68/69K in unmated conditions, keying W; UTS710E6SWM16
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS710E6SWM16
Product Length/Depth
25.3 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
11.2 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against basic bath Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A IEC 6 A UL 6 A CSA
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Sealed IP68/69K protection guards against water, dust and immersion, keeping six gold-plated solder-cup contacts reliable in washdown and outdoor environments. This protection, coupled with a 7 A rating, reduces field downtime and rework, enabling uninterrupted operation in packaging lines, outdoor machinery, and harsh industrial settings. The compact 25.3 mm length and 27 mm footprint fit tight panels without compromising seal integrity, delivering space-efficient connectivity for control cabinets and distributed I/O. The threaded receptacle design with no backshell option and a 1/3 Bayonet coupling simplifies installation and maintenance, speeding up field terminations and service recalls while maintaining robust environmental sealing. Robust electrical performance is supported by 250 mating cycles and gold-plated contacts to minimize contact resistance over time.
Get a Quick Quote for a Eaton UTS710E6SWM16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS710E6SWM16?
Enquire Now
FAQs
The UTS710E6SWM16 uses a threaded receptacle with no backshell option and a 1/3 Bayonet coupling, enabling quick, secure mating. For field service, this means fewer accessory parts and faster terminations, while maintaining IP68/69K sealing and reliability in harsh environments.
This connector is rated for 7 A (IEC) and 6 A (UL/CSA) with test voltages up to 250 V (UL) and 32 V (IEC). The solder cup contacts are gold-plated for low contact resistance and longevity, making it suitable for power and signal applications in industrial control panels.
Yes. It is IP68/69K rated for immersion and exposure to washdown conditions, with environmental resistance that includes UV exposure and resistance to various baths. Its RoHS exemptions and IEC 61984 compliance support reliable operation in outdoor or harsh industrial settings.
The connector features RoHS exemption 6.c, UL 1977, CSA-C22.2 No.182.3, and IEC 61984 approvals. These certifications support safe integration into a wide range of electrical systems and ensure compliance with common North American and international standards.
The unit supports up to 250 mating cycles and operates from -40 °C to 105 °C. Its plastic shell, neoprene insert, and gold-plated contacts are designed for long-term reliability in demanding environments, reducing maintenance frequency and extending equipment uptime.
