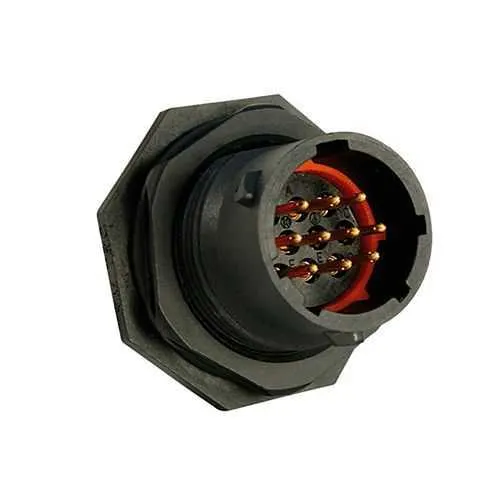

Eaton UTS71210P Receptacle - IP68/69K Waterproof
Part Number: UTS71210P
Quick Summary
Eaton UTS71210P is a plastic waterproof receptacle connector designed for rugged, harsh-environment wiring applications. Engineers frequently contend with water ingress, field failures, and limited compatibility when upgrading to IP-rated connectors. This design achieves IP68/IP69K protection and meets UL 1977, IEC 61984, and CSA C22.2 No.182.3 certification benchmarks, delivering safety and traceability. The jam-nut receptacle supports 10 male crimp contacts and a compact footprint, enabling quick installations in tight spaces. With the Souriau UTS series approach, you gain reliable installation, broad chemical resistance, and a longer service life, reducing maintenance downtime and total cost of ownership.
Product Information
Extended Description
UTS71210P Eaton: Plastic jam nut receptacle, without backshell, for 10 male contacts, IP68/69K; UTS71210P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210P
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 Fire & Smoke REACH
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline
Test current
5 A UL 4 A CSA 6 A IEC
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K waterproof rating protects against dust, water, and oil exposure, reducing ingress-related failures in outdoor cabinets, machinery, and mobile equipment. This translates to higher uptime and lower warranty costs in harsh environments. Application result: industrial automation panels, outdoor sensors, weather-exposed machinery. Feature → 10 contact positions with crimp contacts and a 1/3 bayonet coupling provides secure, vibration-resistant connections while enabling straightforward field termination. Impact: faster assembly and reliable signal/power distribution, cutting installation time by minutes per connector and minimizing contact resistance issues in demanding automation controls. Application: conveyors, robotics, and process equipment that require robust electrical interfaces. Feature → Operating range -40 °C to 105 °C and 250 V/5–6 A ratings align with standard industrial and control panel specs, ensuring safe operation across temperature swings. Impact: stable performance in extreme environments, reducing failure modes and extending equipment life. Application: outdoor drives, mining equipment, and mobile machinery. Feature → Material composition including polyamide inserts and aluminum nut delivers chemical resistance and durable mechanical integrity. Impact: long service life under oil, fuel, or cleaning solvents, lowering maintenance cycles. Application: hydraulic machines, agricultural machinery, and heavy-duty automation hardware. Feature → 250 mating cycles and RoHS-compliant construction address lifecycle and regulatory requirements while supporting long-term procurement stability. Impact: predictable maintenance schedules and compliant supply chain. Application: OEMs designing for long-term production runs.
Get a Quick Quote for a Eaton UTS71210P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210P?
Enquire Now
FAQs
The UTS71210P is designed as a jam-nut receptacle within the Souriau UTS series and supports the 10-position cavity configuration with a 1/3 bayonet coupling. It integrates with standard UTS series mating inserts and backshell options, enabling modular system design and fast field upgrades without replacing neighboring connectors. This compatibility reduces engineering lead time and keeps spares inventory lean.
The connector carries IP68/69K protection, ensuring resistance to dust, water, and high-pressure wash environments. It operates from -40 °C to 105 °C and resists mineral oil, fuels, and basic fluids. These ratings make it suitable for outdoor equipment, mobile machinery, and harsh industrial environments where ingress protection and temperature tolerance are critical.
Yes. Its plastic shell with jam-nut receptacle design, together with UV resistance and chemical resilience (oil, acid bath, gasoline), supports outdoor enclosures, conveyors, and remote sensor nodes. With 250 mating cycles and robust vibration resistance per IEC 60512, the connector maintains performance in dynamic industrial settings, reducing unplanned downtime.
The UTS71210P complies with UL 1977, IEC 61984, and CSA C22.2 No. 182.3, ensuring safety and interchangeability in North American and international markets. It also meets RoHS and has a UL94 V0 flammability rating, supporting regulatory requirements commonly encountered in machine-building and automation projects.
Choose the jam-nut receptacle with 10 cavities and plan for 1/3 bayonet coupling in tight spaces. Note that the connector is supplied without backshell or contact delivery, which can simplify installation in compact assemblies but requires separate ordering for accessories. The combination of high IP protection, long lifecycle (250 mating cycles), and reliable contact termination reduces maintenance costs and extends equipment uptime.
