Eaton UTS71210PW Plastic Waterproof Connector - IP68/69K
Part Number: UTS71210PW
Quick Summary
Eaton UTS71210PW plastic waterproof connector provides rugged power interfacing for harsh environments. Maintenance downtime and ingress risk undermine reliability; this jam-nut receptacle offers robust sealing and durable contacts to keep critical machinery online. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, delivering industry-aligned protection and cross-border usability in demanding applications. For designers and integrators, it means fewer replacements and simpler harnessing thanks to its 10-position layout, 1/3 bayonet coupling, and compatibility with standard crimp contacts. In addition, the compact form factor and corrosion-resistant materials help reduce enclosure footprint while improving overall system reliability and serviceability across automation and motion control projects.
Product Information
Extended Description

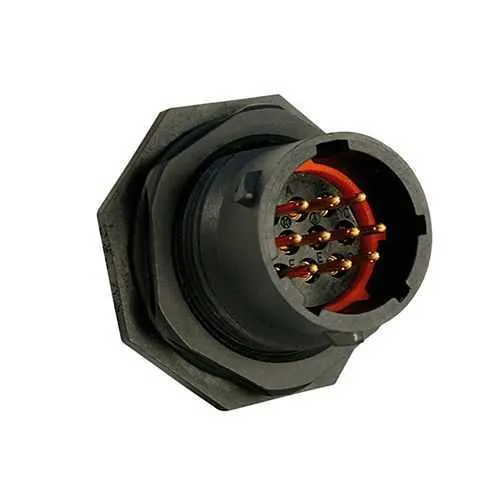

UTS71210PW Eaton: Plastic jam nut receptacle, without backshell, for 10 male contacts, IP68/69K, keying W; UTS71210PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210PW
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against acid bath
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
50 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: The IP68/IP69K sealing provides robust ingress protection, minimizing contamination and downtime in washdown environments, which translates to lower maintenance costs and higher uptime for packaging lines and outdoor machinery. Application: food & beverage lines, outdoor conveyors, and harsh automotive test rigs. Feature → Business Impact → Application: The 1/3 bayonet coupling enables quick mating and dismantling, reducing setup and maintenance time by minutes per connection, boosting overall line efficiency. Application: on-site field replacements and modular machine architectures. Feature → Business Impact → Application: A 6 A IEC current rating at 50 V supports reliable small-signal and control power without overheating, enabling compact harness designs and safer panel wiring. Application: sensor assemblies, valve manifolds, and control modules. Feature → Business Impact → Application: -40 to 105 °C operating range ensures performance in extreme environments, eliminating need for multiple part variants and simplifying procurement. Application: outdoor automation, oil/gas processing, and welding lines. Feature → Business Impact → Application: 10 contacts and crimp contact capability provide scalable I/O density with proven mating life (250 cycles), reducing replacement frequency and supporting long-term maintenance strategies. Application: multi-sensor arrays, motor feedback harnesses, and distributed I/O networks. Feature → Business Impact → Application: Polyamide insert and plastic shell deliver lightweight, corrosion resistance, and cost-effective manufacturing, enabling easier installation and longer service life in portable equipment and mobile machinery.
Get a Quick Quote for a Eaton UTS71210PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210PW?
Enquire Now
FAQs
The UTS71210PW uses a jam-nut receptacle design with a 1/3 bayonet coupling, simplifying field mounting and removal. Ensure proper grommet and strain relief on the harness to maintain IP68 protection, and use compatible crimp contacts for a secure, vibration-resistant connection. The 25.3 mm depth and 31.8 mm width support compact enclosures while maintaining adequate harness routing space.
Yes. This connector is rated for a wide operating temperature range from -40 °C to 105 °C, enabling reliable performance in outdoor, automotive, and industrial environments where temperature swings are common. Material choices, including polyamide inserts and plastic shells, support thermal stability and long-term durability.
Absolutely. With an IP68 rating and robust sealing, the UTS71210PW is designed to resist ingress from water and dust in washdown and rugged industrial environments. This makes it an ideal choice for food processing lines, packaging equipment, and outdoor machinery exposed to moisture.
The connector complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, ensuring compatibility with global electrical safety standards. This supports cross-border procurement and enables easier qualification for automotive, industrial, and machinery applications requiring recognized certifications.
The 10-contact receptacle is rated 6 A IEC and 5 A UL at 50 V with a mating cycle life of 250. It uses crimp contact delivery and is configured as a jam-nut receptacle with male pins. This configuration supports compact, reliable sensor and control wiring in machine controls and distributed I/O networks.
