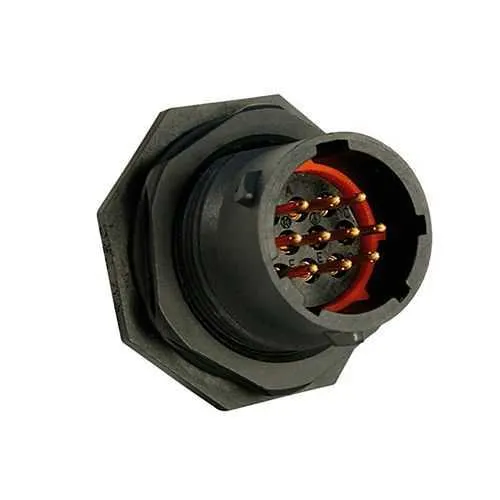

Eaton UTS71210PX Plastic Waterproof Connector - IP68/69K
Part Number: UTS71210PX
Quick Summary
The Eaton UTS71210PX plastic waterproof IP68/69K connector provides a rugged 10‑position interface for harsh environments. OEM engineers often struggle with sealing integrity, rapid field installation, and long service life in outdoor or mobile equipment. It carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 compliance, plus the IP68/69K protection and vibration resistance for reliable performance. Designed for modular, scalable layouts and easy use with crimp contacts, it helps reduce assembly time, maintenance costs, and risk in control cabinets and equipment. With a compact footprint and a jam-nut receptacle, it simplifies installation in tight panels and supports durable, long‑term operation in demanding applications.
Product Information
Extended Description
UTS71210PX Eaton: Plastic jam nut receptacle, without backshell, for 10 male contacts, IP68/69K, keying X; UTS71210PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210PX
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against gasoline Resistant against oil Resistant against acid bath
Test current
6 A IEC 5 A UL 4 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K protection and plastic jam nut receptacle for 10 contact positions. Business Impact: Delivers reliable sealing against dust and water in exposed environments, reducing field failures and warranty costs. Application: Outdoor machinery, agricultural equipment, and rugged control panels. Feature: 1/3 Bayonet coupling with quick mating. Business Impact: Accelerates assembly and dessaembly time on production lines, improving line efficiency. Application: OEM harness assemblies and maintenance-friendly installations. Feature: Operating temperature range from -40 °C to 105 °C and UV/oil resistance. Business Impact: Maintains performance across varied climates and industrial fluids, lowering downtime due to environmental stress. Application: Mobile equipment, outdoor enclosures, and factory floors. Feature: 10-contact, crimp contact configuration with polyamide insert and plastic shell. Business Impact: Lightweight, compact design enables higher pack density and easier routing in control panels, reducing weight and space needs. Application: 10‑circuit power and signal distribution in compact machines. Feature: 250 mating cycles and vibration resistance per IEC 60512-4. Business Impact: Improves lifecycle reliability and service intervals, delivering lower maintenance costs and higher uptime. Application: Heavy-duty automation and robotics where frequent mating is expected. Feature: RoHS and REACH compliance with broad environmental resistance to oils, acids, salts, and cleaners. Business Impact: Regulatory alignment and reduced risk from chemical exposure in manufacturing environments. Application: Food and beverage processing equipment, packaging lines, and chemical plants.
Get a Quick Quote for a Eaton UTS71210PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210PX?
Enquire Now
FAQs
For proper mounting, use the jam nut receptacle without a backshell, ensuring the panel cutout suits the 25.3 mm depth and 31.8 mm width/height. The 10‑way layout requires crimp contacts and correct alignment of the 1/3 bayonet coupling. Confirm mating orientation as X and check that all seals remain intact after installation to preserve IP68 performance.
The IP68/69K rating ensures immersion protection and high dust ingress resistance, safeguarding internal conductors from water, dust, and contaminated environments. This rating supports reliable operation under high-pressure washdowns, rain, and dusty environments, reducing corrective maintenance and extending service life in outdoor machinery and mobile equipment.
Yes. The connector is a 10‑cavity jam nut receptacle designed for the UTS series with a 10‑contact layout. It uses crimp contact delivery and a 1/3 bayonet coupling, allowing straightforward mating with compatible male plugs. This compatibility streamlines harness design and reduces field rework when integrating with existing UTS components.
The UTS71210PX carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 compliance. These certifications support safe electrical performance, inter‑device compatibility, and regulatory acceptance in many regions, helping you meet national and international standards while maintaining product reliability in certified equipment.
The combination of 250 mating cycles, IP68/69K sealing, and robust environmental resistance reduces downtime and maintenance frequency. Its lightweight, compact design lowers wiring complexity and panel space, enabling faster assembly. Over the equipment lifecycle, you gain lower maintenance costs and higher uptime, improving overall return on investment in rugged automation and control systems.
